DIY Satellite1.1 Smart Speaker Enclosure Kit
DIY Satellite1.1 Smart Speaker Enclosure Kit
Available on backorder — Restock May 27, 2026
Couldn't load pickup availability
Transform our Satellite1 Voice Assistant Dev Kit into a beautifully crafted 20-watt, 2-way smart speaker. Enjoy rich sound and seamless multi-room music across multiple Satellite1 units with our built-in Snapcast integration (Sendspin support coming soon!). Best of all, talk to your own private AI voice assistant in every room to control your smart home.
Finally! We have great-sounding audio designed for the Home Assistant platform! Enjoy!
Key Features:
3" 15W Mid-Range Woofer (20W Peak @ 4Ω)
- Delivers clear, powerful mid-range with strong bass response
- Punchy 80Hz–6000Hz frequency response
- 78mm round frame with 86dB sensitivity
1.2" 15W Neodymium Dome Tweeter (20W Peak @ 4Ω)
- Smooth, detailed high-frequency response
- Clear 2.5k - 20KHz frequency response
- Aluminum heat sink for stable performance

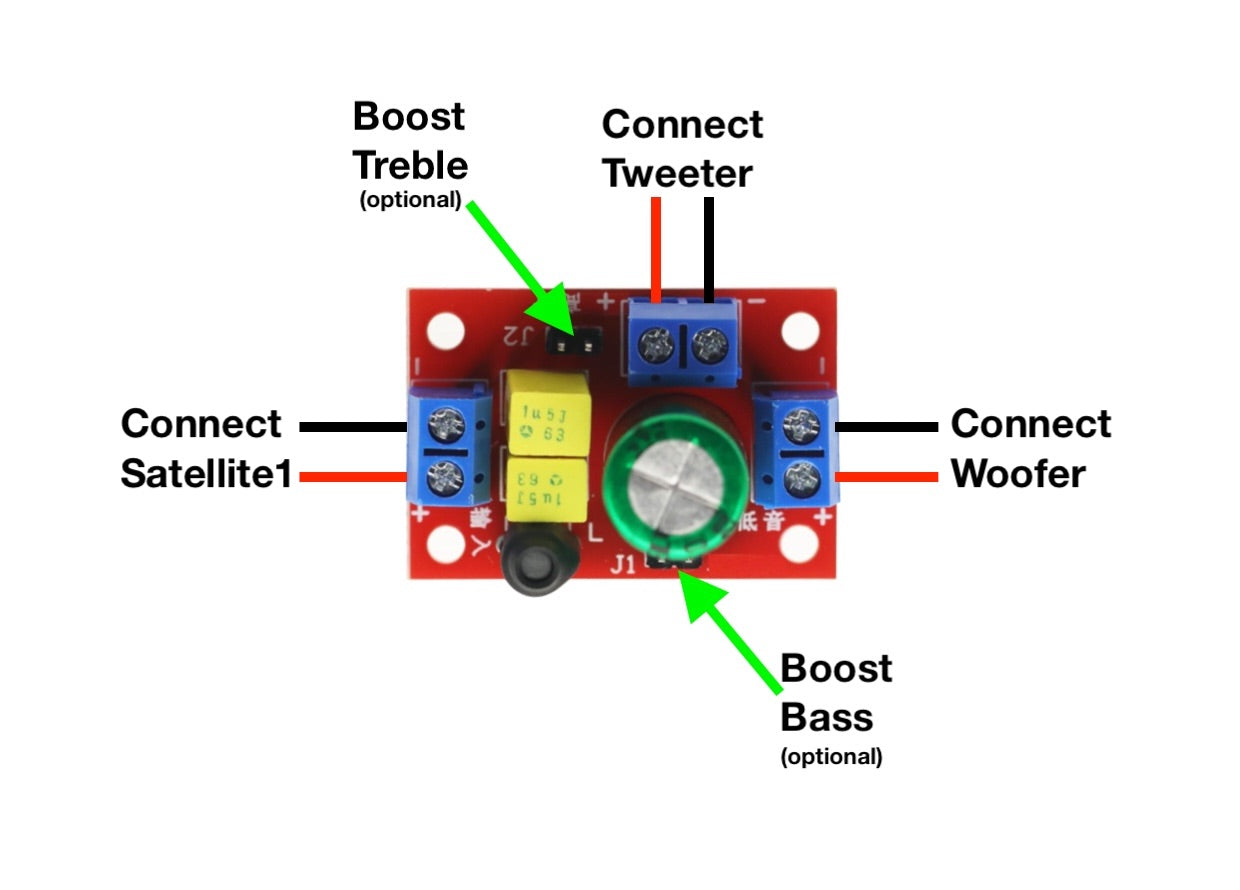

2-Way Passive Crossover (Optional Bass & Treble Booster)
- Ensures distribution of high and low frequencies to each driver
- Optionally boost bass and/or treble.
Custom 3D-Printed Mesh Speaker Enclosure
Available in Charcoal Gray or Bone White. Engineered for strength, beauty, sound and to perfectly fit our Satellite1 Core and Hat board dev kit. Enclosure Includes:
- Front speaker chamber with "stealth pocket" for LD2450 human presence sensor - PETG, 30% infill
- Back speaker chamber with "stealth pocket" for Sat1.1 external WiFi antenna, and a bass port for optimized sound - PETG, 30% infill
- Top plate & LED diffuser multi-material print - PETG, 15% infill
- Screw guide tool – PETG, 15% infill
- Printed using your choice of color:
Additional Included Components
- Internal wiring, mounting screws, hex wrench and airtight sealing strip included in kit.
Sold Separately:
- Satellite1 Dev Kit and Power Supply
- Purchase the LD2450 mmWave sensor with our custom dual-sided 4-pin JST-ZH connector cable. Make use of the Satellite1 "stealth pocket" to upgrade your speaker with human presence detection!
Documentation:
Dimensions
Dimensions
When removed from packaging:
Width: 110 mm
Length: 110 mm
Height: 181 mm
Weight
Weight
When removed from packaging:
950 g
Share
Build the Satellite1 Together

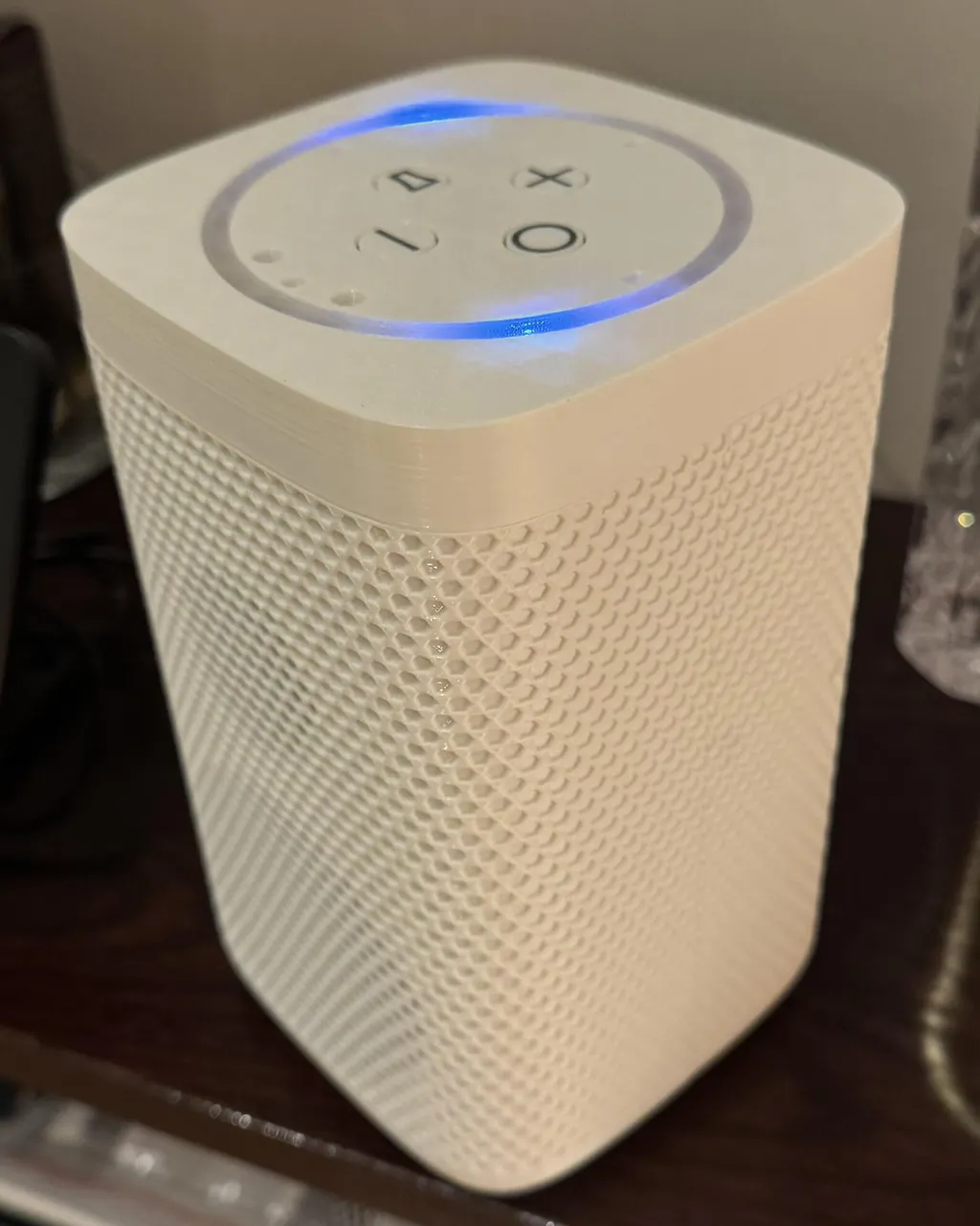

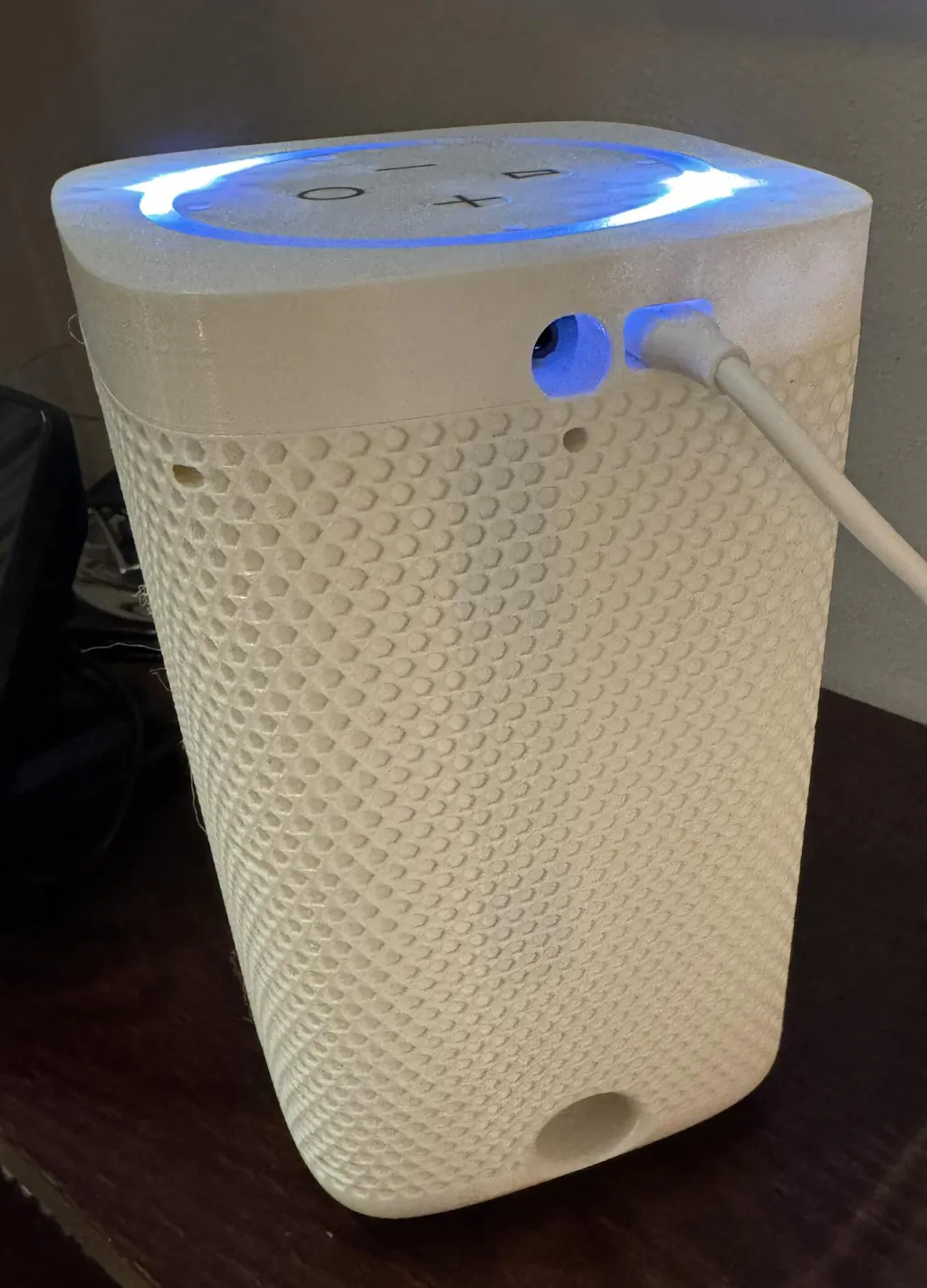

I ordered my 2nd Gen FPH Sat1 Smart Speaker Enclosure Kit back on April 8th, and it arrived April 25th. This new design enclosure includes the bass port tube that exits out the back. The port tube is exquisitely designed and printed, a true work of art! The enclosure also has an embedded pocket for the new ESP32 external WiFi antenna, and another pocket for the optional LD2450 sensor. The only thing I noticed about the new enclosure is it lacks the bottom surface channel to make adding a rubber anti-slip strip easier. Love these improvements! All that's missing now is a way to allow the USB cable to exit from the bottom instead of from the top of the enclosure. As usual, the kit assembles flawlessly, and everything just fits toghether. Great sound, too !!
I have a version 1 can’t wait to get the 1.1 and put it together and see and hear the improvements and put the presence sensor to work. Keep the improvements coming!!!
Excellent speaker kit and easy to put together.
Better than the original single speaker version and sounds about as good as my Sonos One SL
I love the hardware but the 3d printed speaker grille was broken out on arrival
Derek, please email support@futureproofhomes.net and we’ll replace the necessary part(s). So sorry for shipping issues here!
