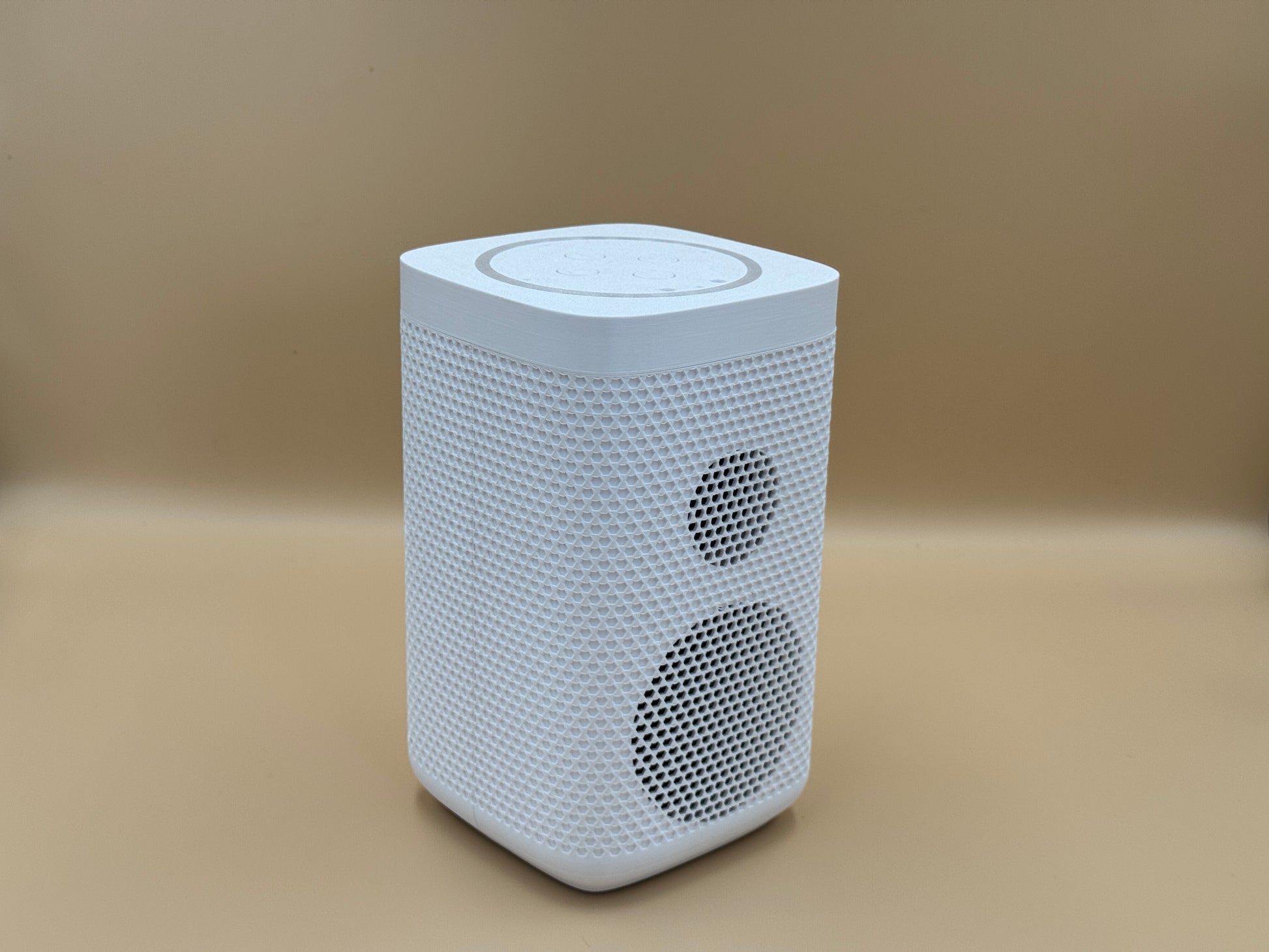

DIY Satellite1.1 Smart Speaker Enclosure Kit

Transform our Satellite1 Voice Assistant Dev Kit into a beautifully crafted 20-watt, 2-way smart speaker. Enjoy rich sound and seamless multi-room music across multiple Satellite1 units with our built-in Snapcast integration (Sendspin support coming soon!). Best of all, talk to your own private AI voice assistant in every room to control your smart home.

Finally!  We have great-sounding audio designed for the Home Assistant platform!  Enjoy!

Key Features:

3" 15W Mid-Range Woofer (20W Peak @ 4Ω)

• Delivers clear, powerful mid-range with strong bass response
• Punchy 80Hz–6000Hz frequency response
• 78mm round frame with 86dB sensitivity


1.2" 15W Neodymium Dome Tweeter (20W Peak @ 4Ω)

• Smooth, detailed high-frequency response
• Clear 2.5k - 20KHz frequency response
• Aluminum heat sink for stable performance


2-Way Passive Crossover (Optional Bass & Treble Booster)

• Ensures distribution of high and low frequencies to each driver

• Optionally boost bass and/or treble.

Custom 3D-Printed Mesh Speaker Enclosure

Available in Charcoal Gray or Bone White.  Engineered for strength, beauty, sound and to perfectly fit our Satellite1 Core and Hat board dev kit.  Enclosure Includes:

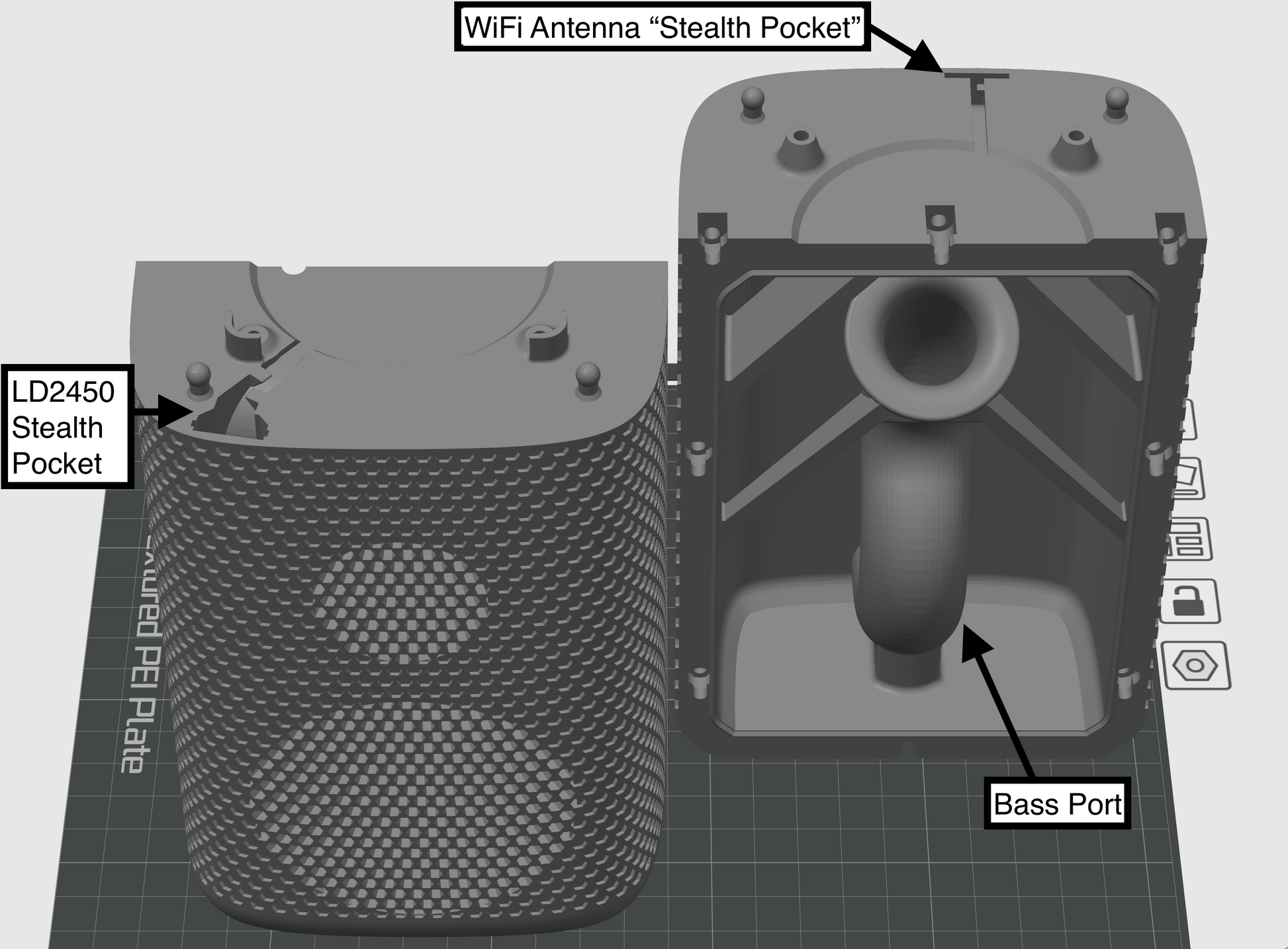

• Front speaker chamber with "stealth pocket" for LD2450 human presence sensor - PETG, 30% infill
• Back speaker chamber with "stealth pocket" for Sat1.1 external WiFi antenna, and a bass port for optimized sound - PETG, 30% infill
• Top plate & LED diffuser multi-material print - PETG, 15% infill
• Screw guide tool – PETG, 15% infill
• Printed using your choice of color:
  • PETG Dark Gray (33103)
  • PETG Bone White (33100)

Additional Included Components

• Internal wiring, mounting screws, hex wrench and airtight sealing strip included in kit.

Sold Separately:

• Satellite1 Dev Kit and Power Supply
• Purchase the LD2450 mmWave sensor with our custom dual-sided 4-pin JST-ZH connector cable.  Make use of the Satellite1 "stealth pocket" to upgrade your speaker with human presence detection!

Documentation:

• Assemble the Satellite1 Smart Speaker Enclosure Kit
