20W Speaker Electronics Kit (DIY)
20W Speaker Electronics Kit (DIY)
In stock
Couldn't load pickup availability

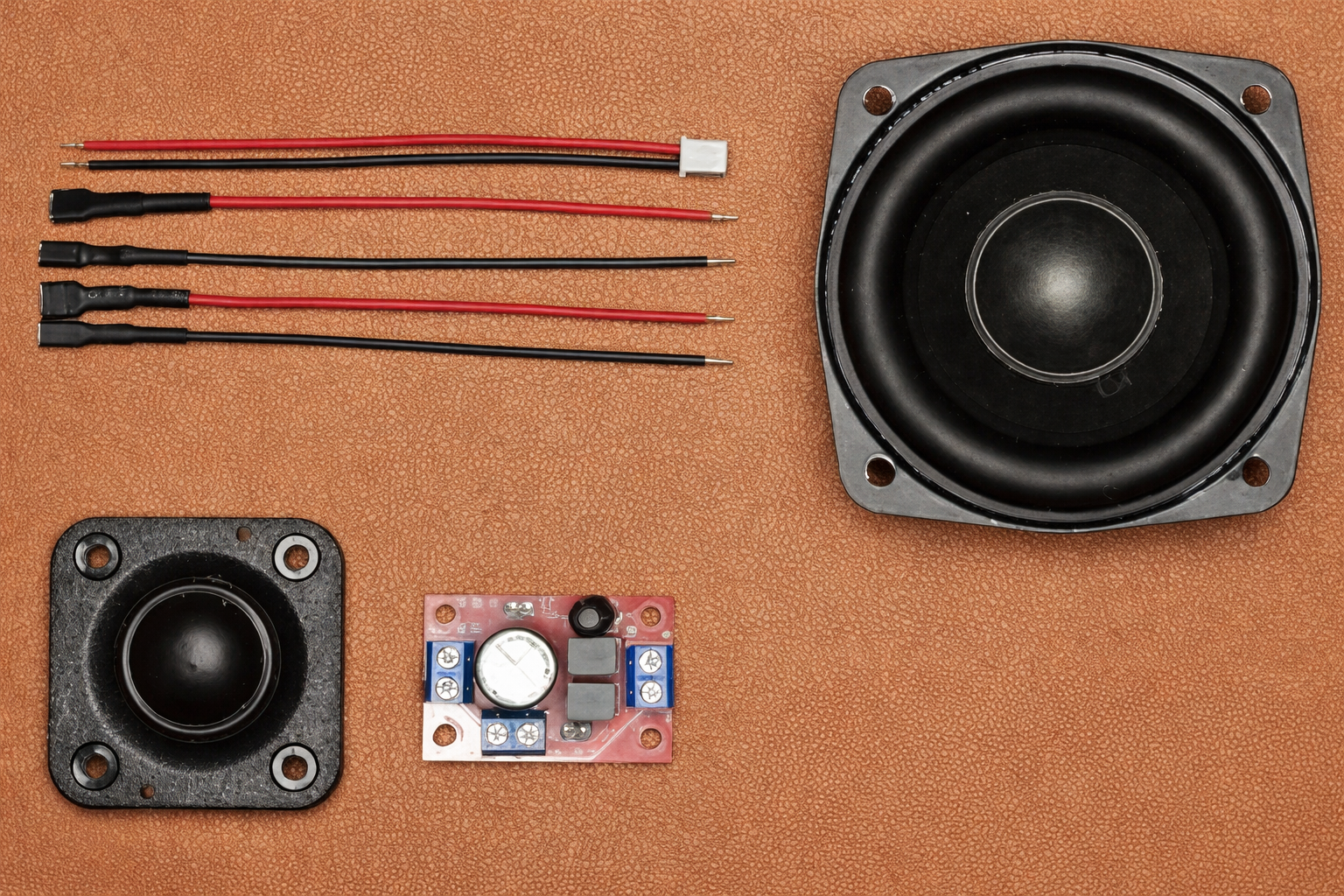

Already have the Satellite1 Dev Kit and plan to print our 3D enclosures at home? This kit is for you! Get all the speaker components and cables required to install inside your own 3D printed enclosures.

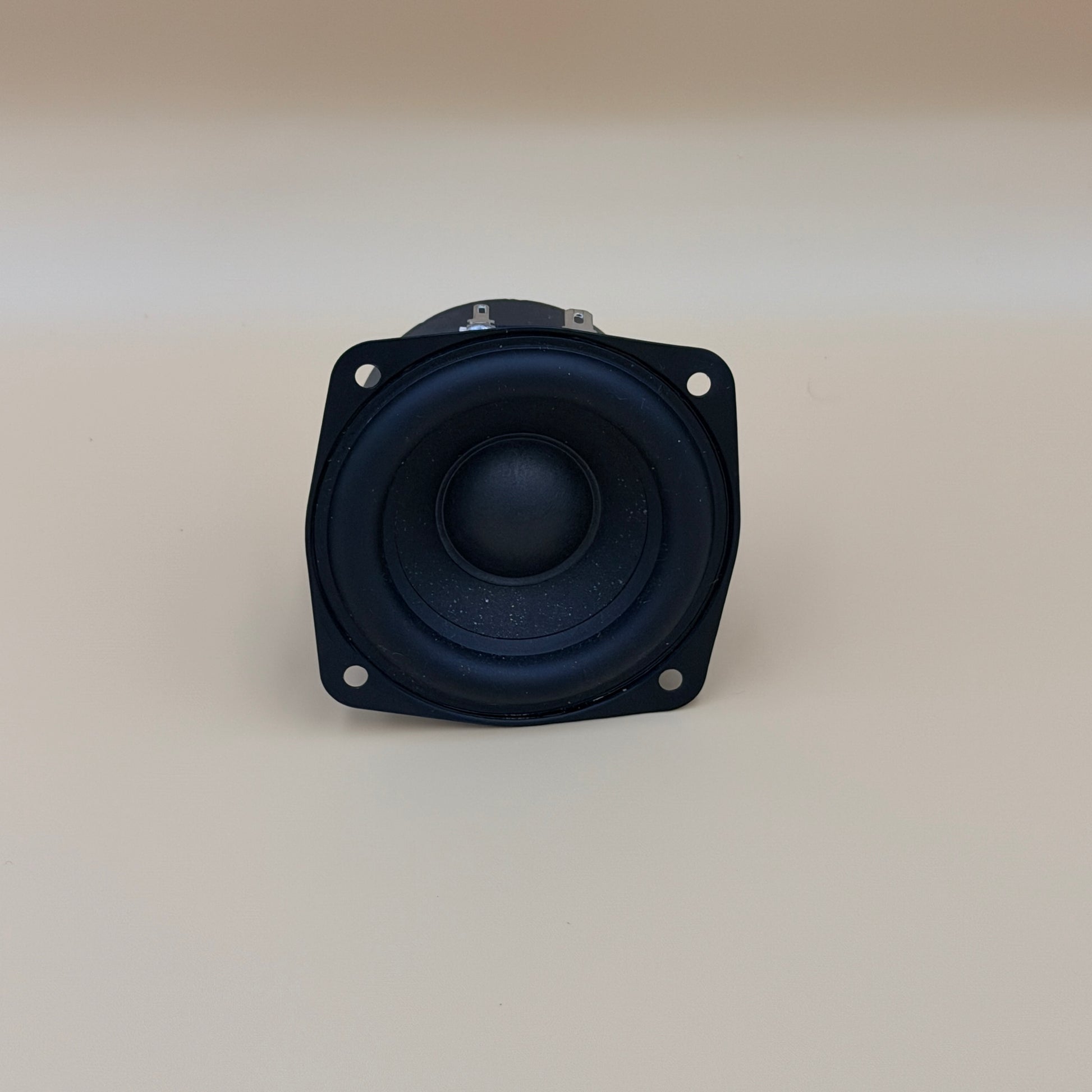

3" 15W Mid-Range Woofer (20W Peak @ 4Ω)
- Delivers clear, powerful mid-range with strong bass response
- Punchy 80Hz–6000Hz frequency response
- 78mm round frame with 86dB sensitivity

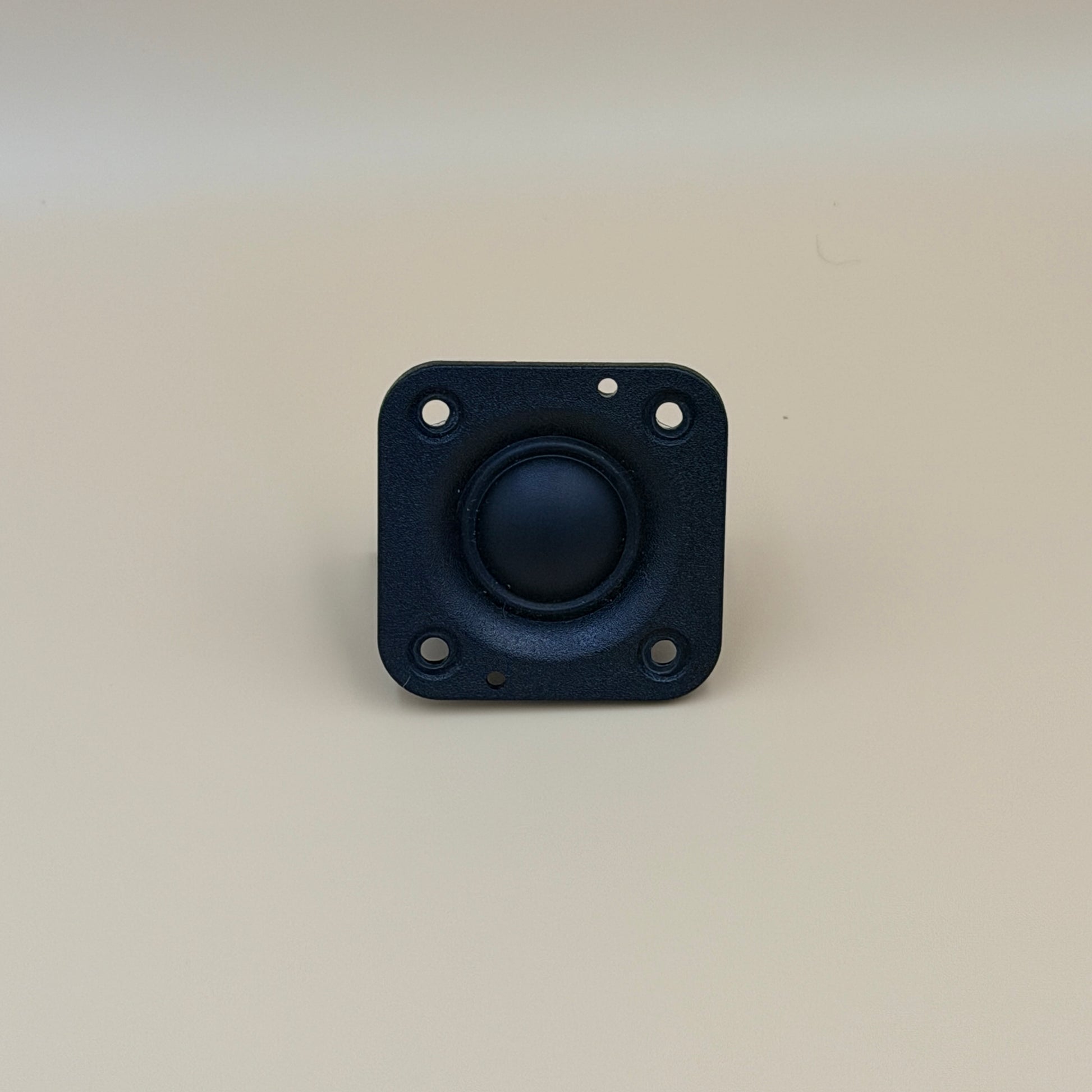

1.2" 15W Neodymium Dome Tweeter (20W Peak @ 4Ω)
- Smooth, detailed high-frequency response
- Clear 2.5k - 20KHz frequency response
- Aluminum heat sink for stable performance

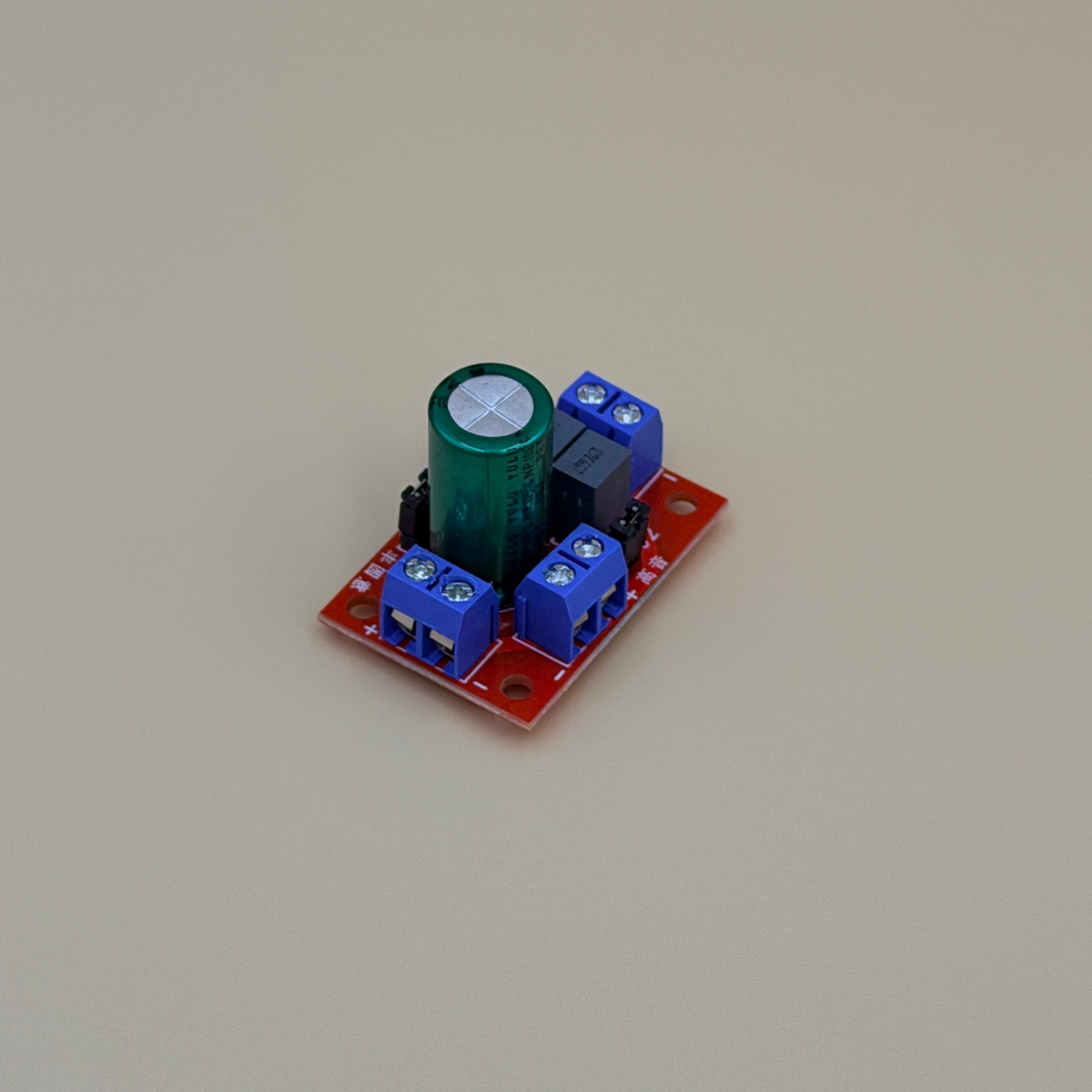

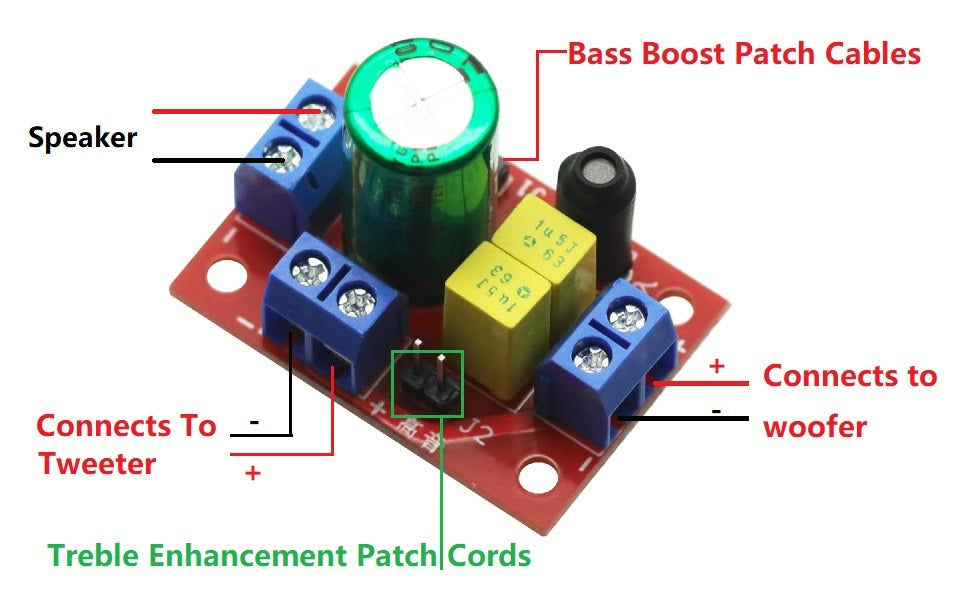

2-Way Passive Crossover (Optional Bass & Treble Booster)
- Ensures distribution of high and low frequencies to each driver
- Optionally boost bass and/or treble.
Speaker Cables Included

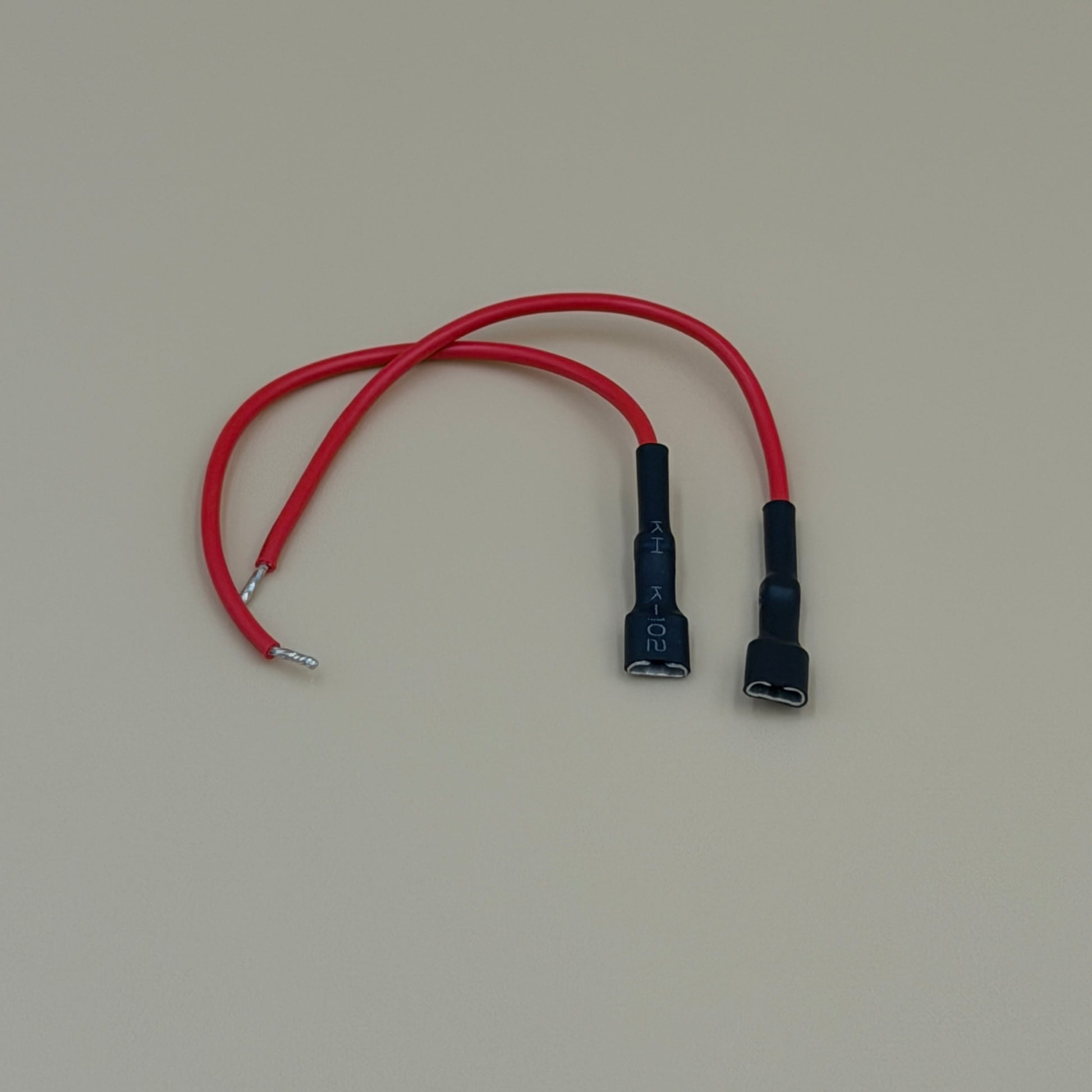

- 2 pcs red 5.3mm speaker cables

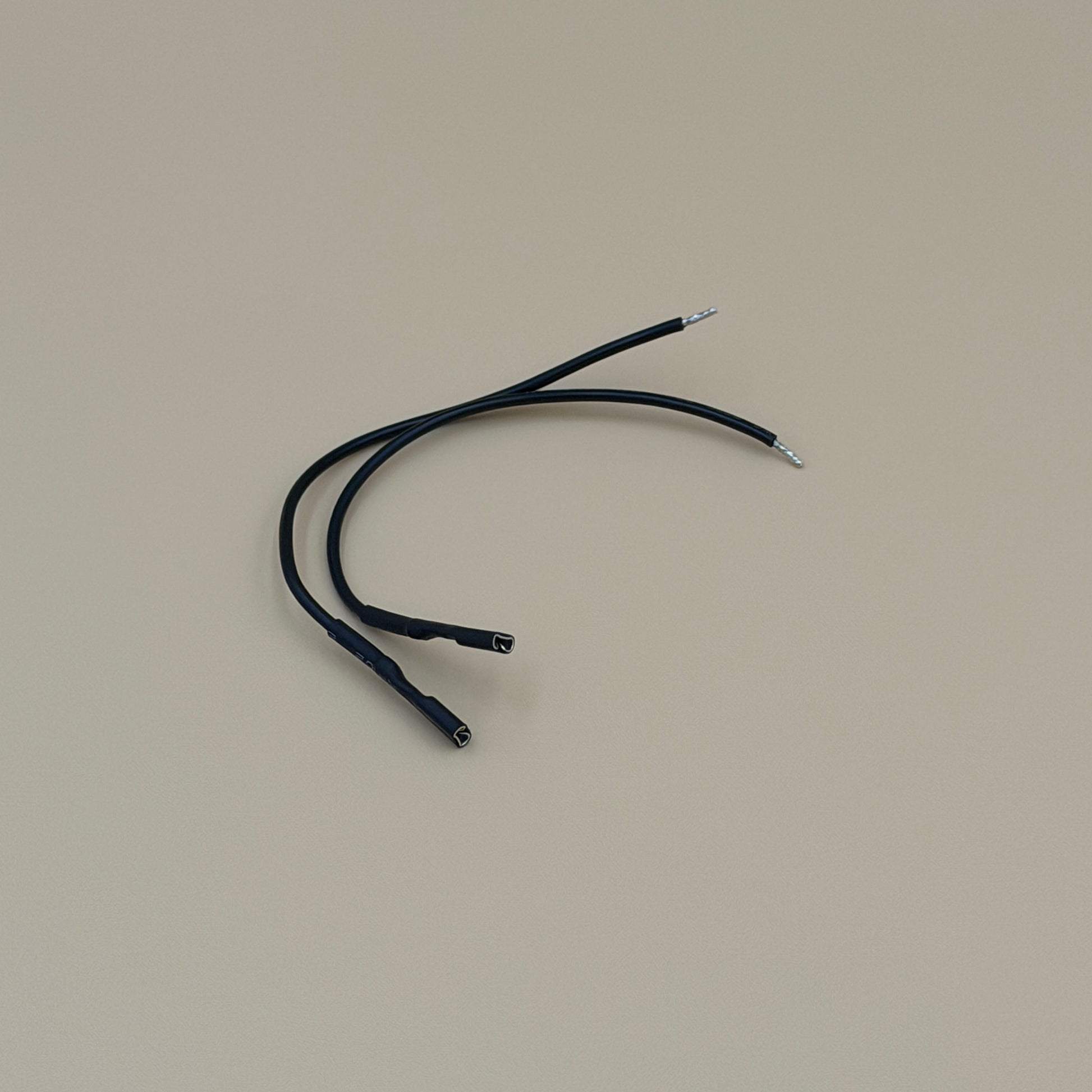

- 2 pcs black 2.8mm speaker cables

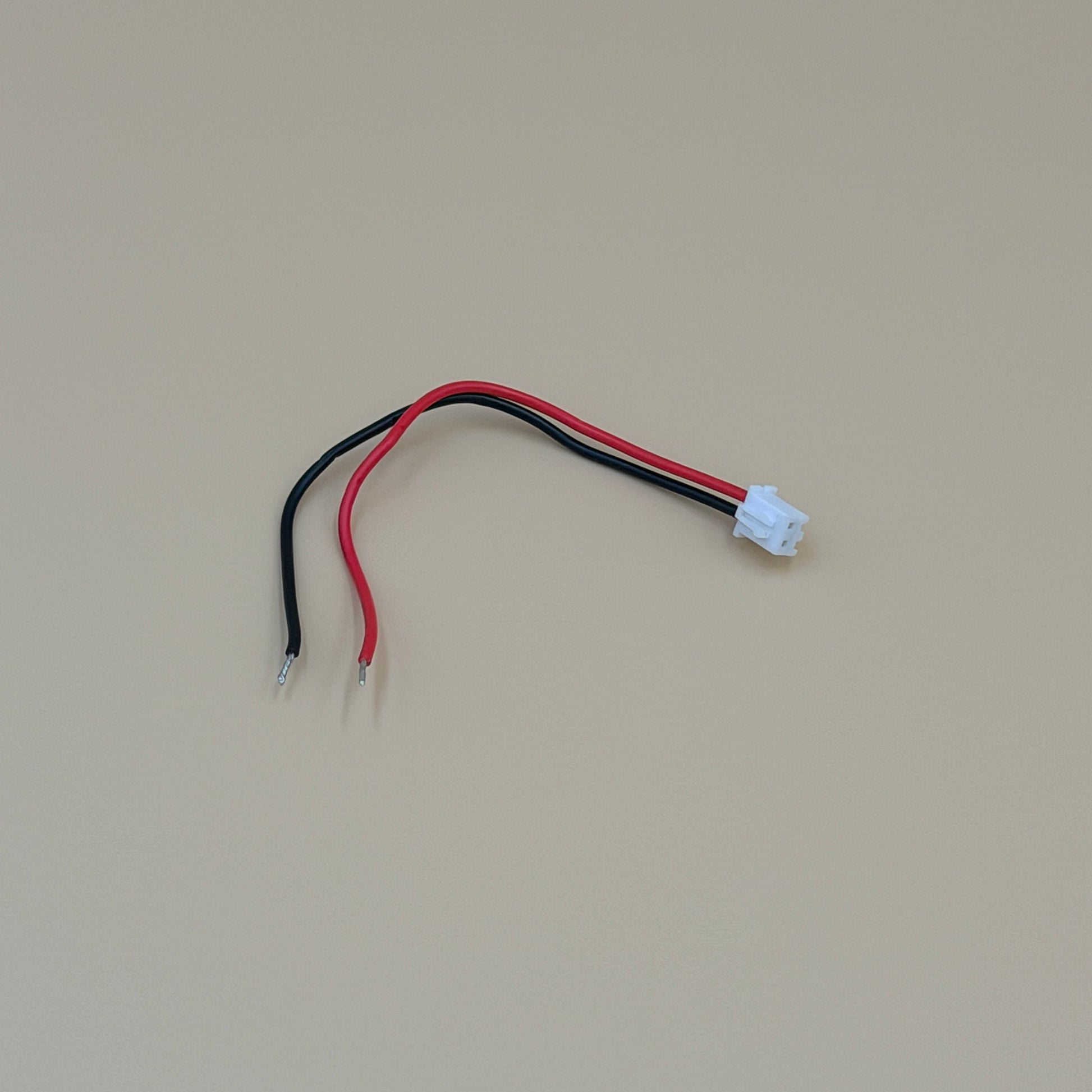

- 1 pcs JST-XH cable
Dimensions
Dimensions
When removed from packaging:
Width:
Length:
Height:
Weight
Weight
When removed from packaging:
Share
Build the Satellite1 Together
The kit is finely 3D printed and all the parts fit together cleanly. I look forward to hearing the sound quality once I receive the satellite 1 Hat which is on order. For the price point it is a good investment because you get the speakers, crossover, and enclosure along with all the required hardware at a reasonable price.
Awesome, just plugged it in and the app guides you through everything. easy as 1..2..3.. 💪
Well made enclosure with very detailed assembly instructions
Product functionality seems to be working well. The box arrived smashed and that smashed the inside box as well. All bubble wrap was flattened. Luckily nothing seems to be broken. Pretty simple to set up in home assistant. Excited have a local system isolated from a public service.
I got the speaker last week, and connected it home assistant and I even built a custom interface to my Roon music server (with a little help from Claude Code). I have an RTX 3080 GPU providing local AI API support on Ollama. The speaker has current weather, news, security camera status, and plays my music library. General build, Mic sensitivity and speaker sound are all top notch. Highly recommended!
