Satellite1 Dev Kit
Satellite1 Dev Kit
In stock
Couldn't load pickup availability
Create your own private voice assistant smart speaker & multi-sensor with the Satellite1 Dev Kit. Featuring advanced audio processing and music playback, this kit includes one HAT board, one CORE board, and a USB-C power adapter/cable. Add your own speaker and 3D print our official enclosures at home!
This Dev Kit is designed for seamless smart home control via the Home Assistant platform.
Key Features:
- Microphone Processing: High-performance microphones with an XMOS audio processing chip.
- Audio Output: Supports high-quality Snapcast multi-room music playback via the powerful 25W built-in amplifier or headphone jack.
- Controls: 4 programmable tactile buttons, including hardware mute for privacy. 360 degree addressable LED ring.
- Sensors: Monitors room temperature, humidity, luminosity, and human presence (when paired with a mmWave radar sensor).
- Radios: Built-in 2.4 GHz Wi-Fi and Bluetooth® 5 (LE).
- Expandable: 40-pin compatible, and an expansion connector for future accessories.
- Compatible: Works with Home Assistant, Music Assistant
Processor:
- ESP32-S3: Dual-core 32-bit LX7, running at 240 MHz with 512 KB SRAM, 16 MB Flash, and 8 MB PSRAM.
- Audio Processor: XMOS XU316, 16-core 32-bit RISC running at 800 MHz with 3200 MIPS, 1024 KB SRAM, and 8 MB Flash.
- RPi: Hat board can optionally be powered by Raspberry Pi with FutureProofHomes firmware (experimental)
Audio Output:
- Line-level 3.5mm Headphone Output: PCM5122
- 25W Mono Amplifier Output: TAS2780
Sensors:
- Ambient Light: LTR-303ALS
- Temperature & Humidity: AHT20
- Optional Human Presence Detection: Add your own LD2410 or LD2450 for mmWave radar human presence detection. Read more here.
Power Requirements:
- Recommend 9V @ 3A USB-C Power Delivery
- Maximum: Boards support up to 20V @ 5A USB-C Power Delivery
Assembly:
Firmware:
- Firmware is factory installed at the factory. Connect to Home Assistant by following steps here.
- Firmware updates arrive over-the-air (OTA)
- If necessary, flash back to factory settings using our ESP Web Flasher.
- Modify the firmware by using the ESPHome Dashboard Builder.
Additional Included Components:
- USB-C Power Delivery Adapter & Cable
Dimensions
Dimensions
When removed from packaging:
Width: 88 mm
Length: 88 mm
Height: 10 mm
Weight
Weight
When removed from packaging:
44 g
Share
Build the Satellite1 Together
Surrounding Noise is Not canceled. I have to mute the Radio / before talking to the Satellit

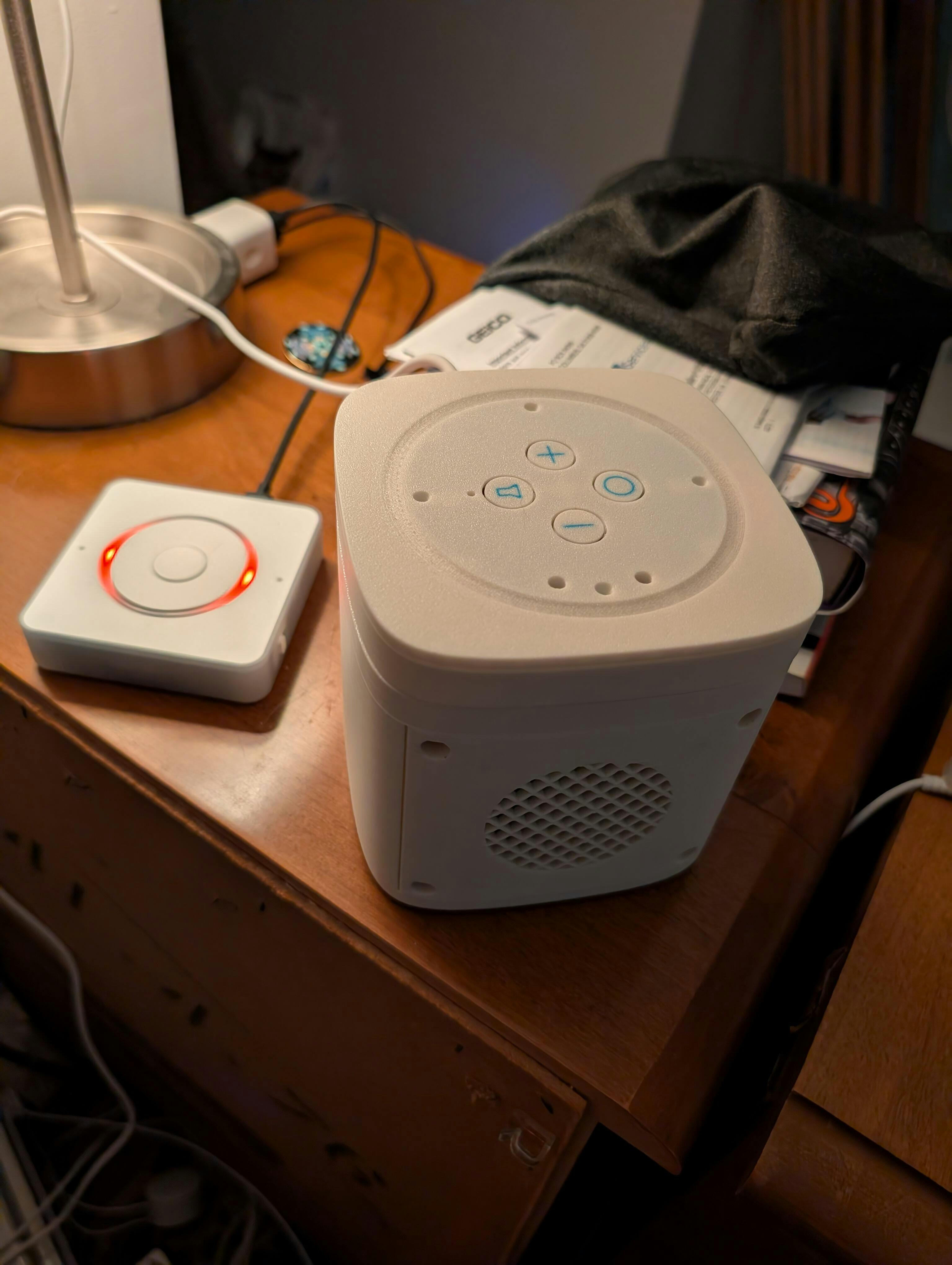

Nice kit. Audio is pretty good with the speaker I used for the mid size build. Side by side with the home assistant voice PE I hate to say it but the satellite one is nowhere near as sensitive to wake words. The voice PE will pick me up from well across the room but I have to speak very loudly or get quite close to the satellite one before it it recognizes me. This only gets worse if there's any audio playing. Even at low volumes I have to speak very loudly. Hopefully this is a software thing and can be fixed. I did a little googling but have not dived in depth for troubleshooting. I can't imagine that it is the enclosure because there are direct holes for the microphones. My first thing might be to disassemble it and see how well it works out of the enclosure. Would love to hear suggestions on how to remedy this. If the sensitivity was better it would be a five-star for sure.
Hey Jonathan,
Sounds like something is wrong, this experience isn't normal. Can I recommend joining us in the discord and sharing a video of your setup and the behavior. That said, our upcoming firmware has a wake word sensitivity setting built-in.
Your 3D printed enclosure looks great. Congrats!
Very impressed with the product itself. The ship time was extremely sluggish and updates didn't work for a while, but out of the box the package was impressive. I wish ESP home builder current version was somewhere close to the extremely behind version compatible with the satellite one product, but at least they flash it beforehand and you don't have to even mess with it really. Everything's pretty simple and straightforward.
Great board as the hat. I also really enjoy the software: easy setup, config in Home Assistant, etc. I was surprised by all the ring animations and sounds that increase even more user experience.
I'm very happy with it: it has many functionalities, great extension possibilities, quality, etc.
