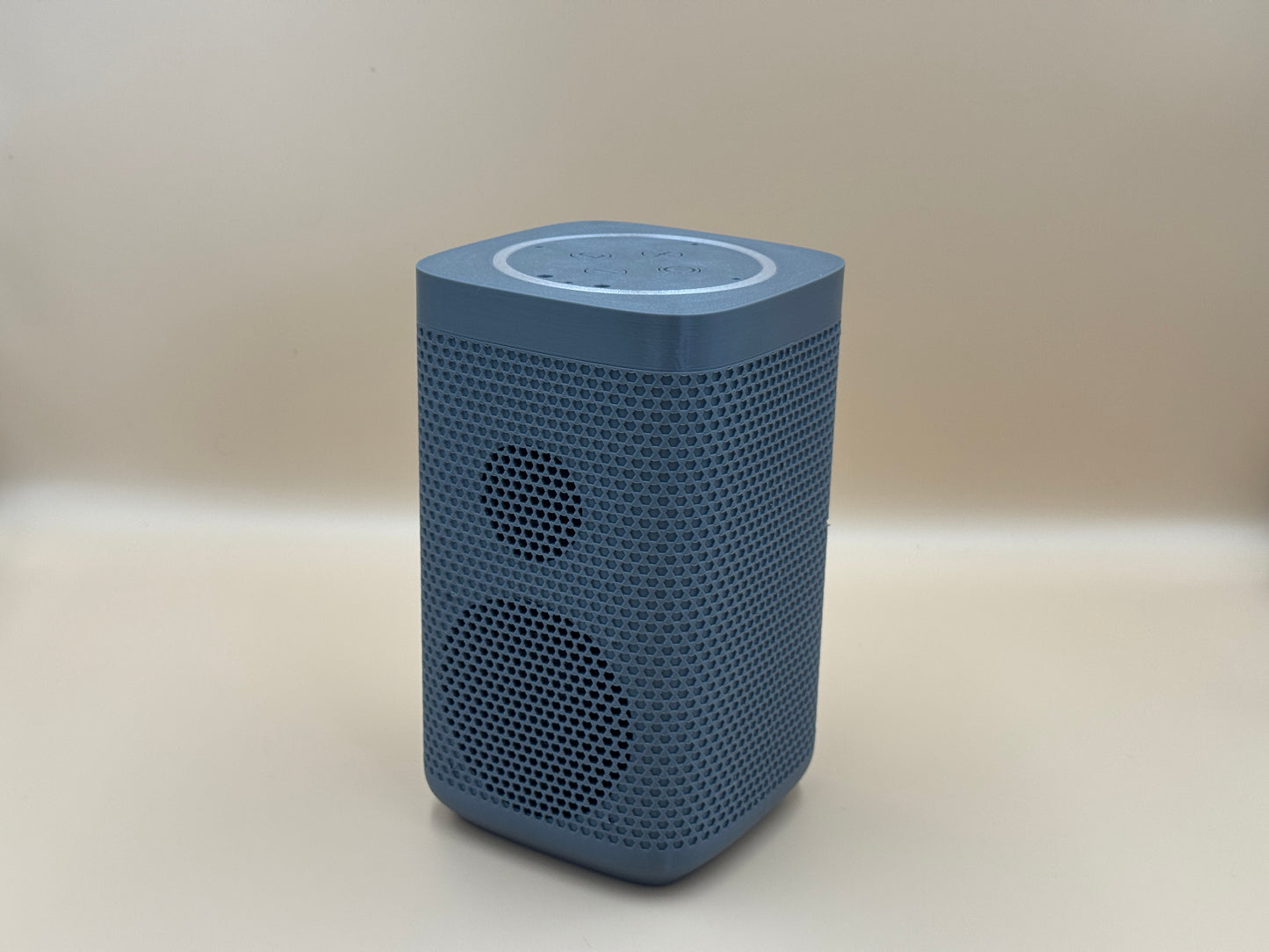

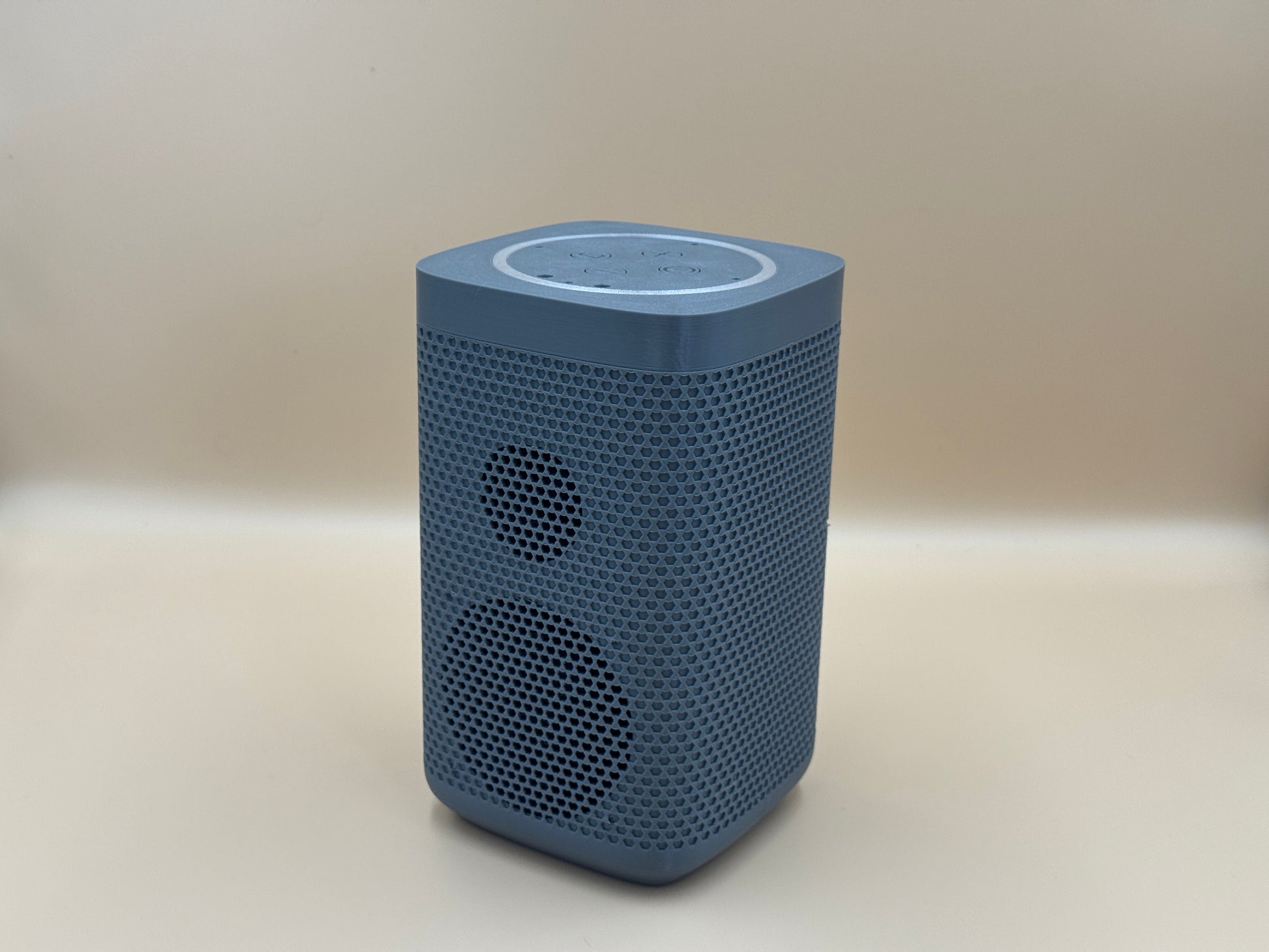

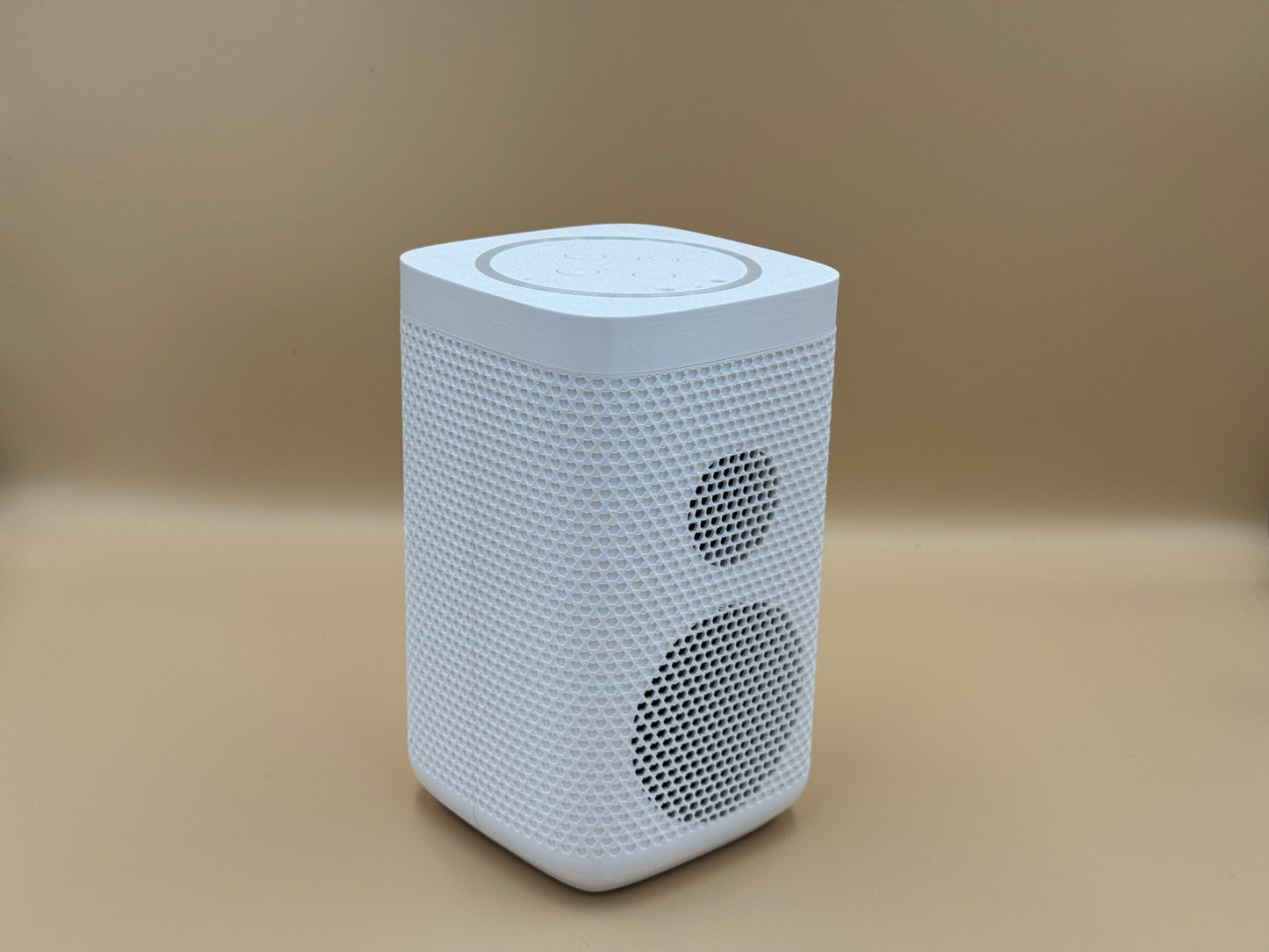

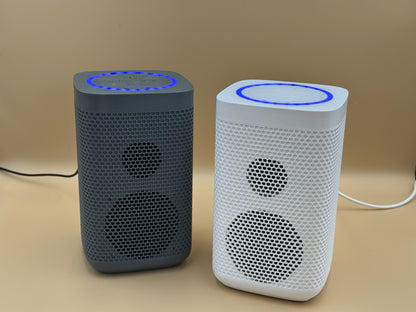

DIY Satellite1.1 Smart Speaker Enclosure Kit
DIY Satellite1.1 Smart Speaker Enclosure Kit
In stock
Couldn't load pickup availability
Transform our Satellite1 Voice Assistant Dev Kit into a beautifully crafted 20-watt, 2-way smart speaker. Enjoy rich sound and seamless multi-room music across multiple Satellite1 units with our built-in Snapcast integration (Sendspin support coming soon!). Best of all, talk to your own private AI voice assistant in every room to control your smart home.
Finally! We have great-sounding audio designed for the Home Assistant platform! Enjoy!
Key Features:

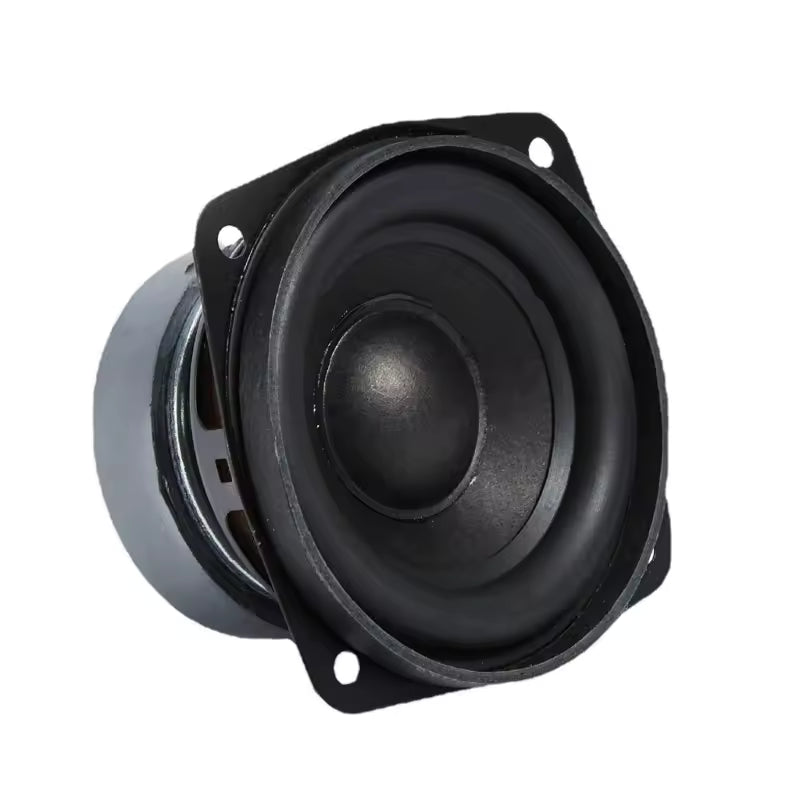

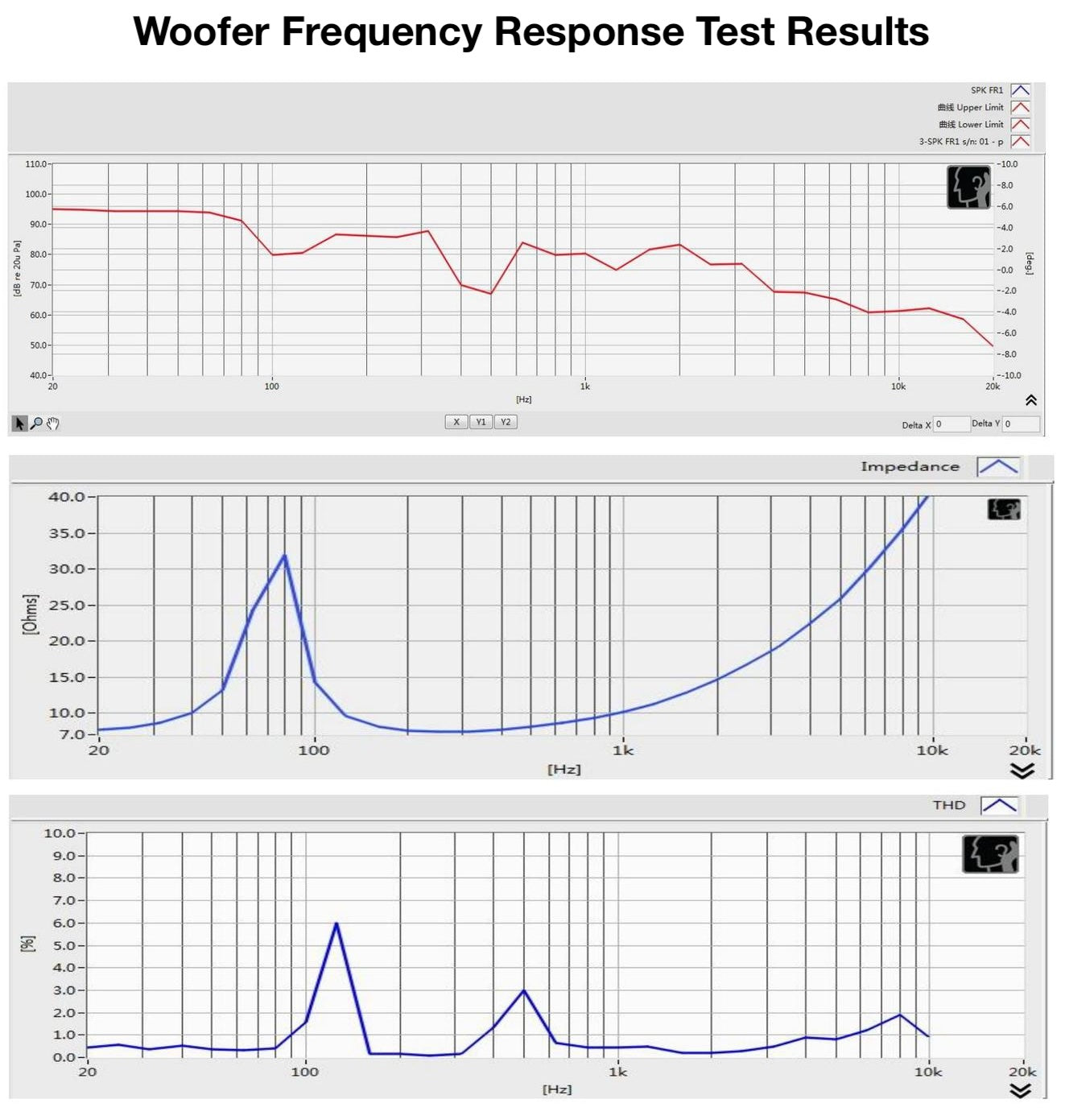

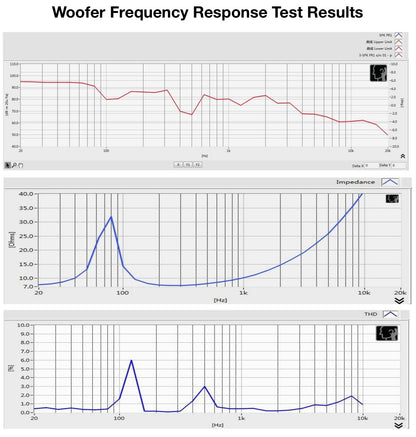

3" 15W Mid-Range Woofer (20W Peak @ 4Ω)
- Delivers clear, powerful mid-range with strong bass response
- Punchy 80Hz–6000Hz frequency response
- 78mm round frame with 86dB sensitivity

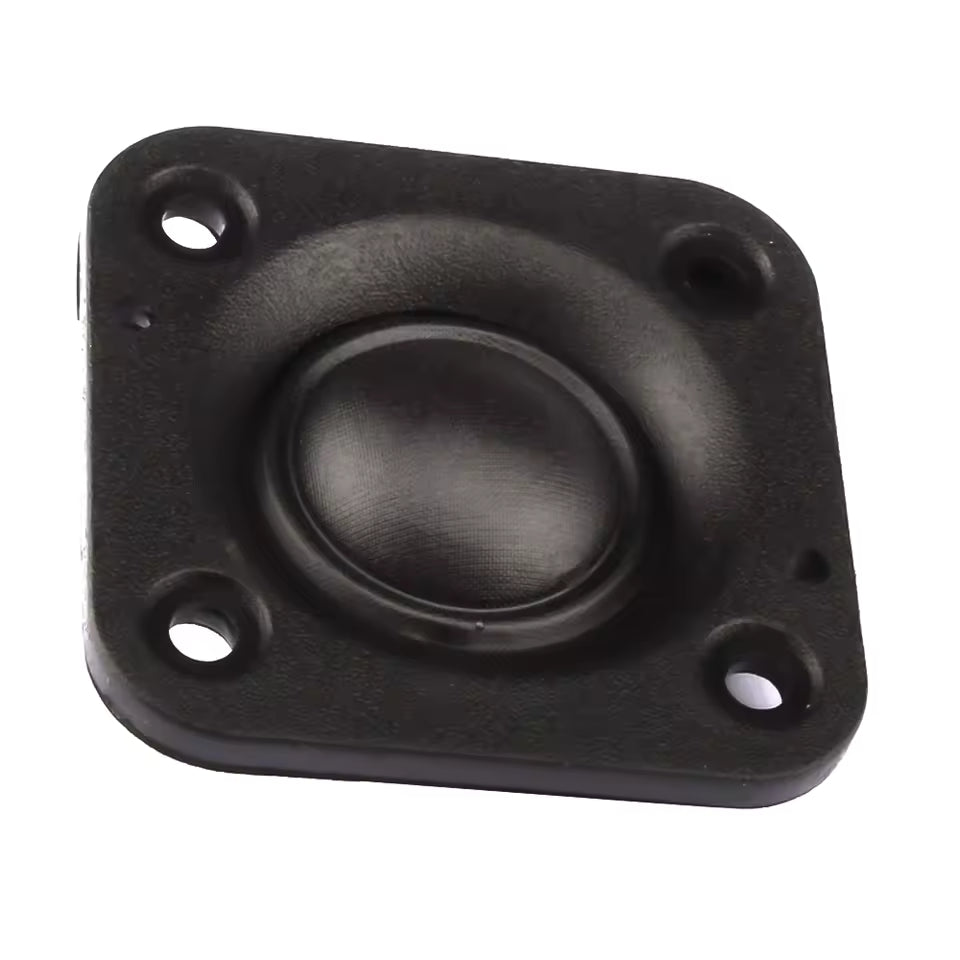

1.2" 15W Neodymium Dome Tweeter (20W Peak @ 4Ω)
- Smooth, detailed high-frequency response

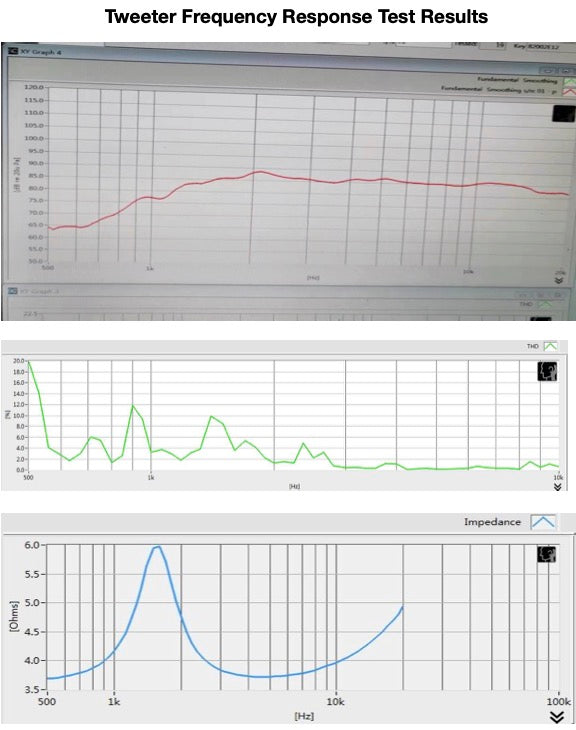

- Clear 2.5k - 20KHz frequency response
- Aluminum heat sink for stable performance

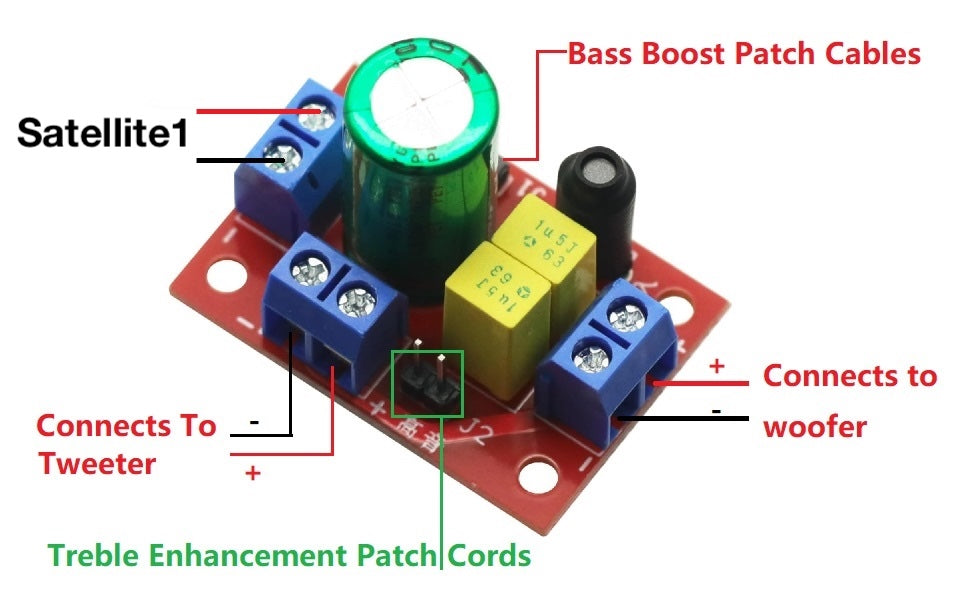

2-Way Passive Crossover (Optional Bass & Treble Booster)
- Ensures distribution of high and low frequencies to each driver
- Optionally boost bass and/or treble.

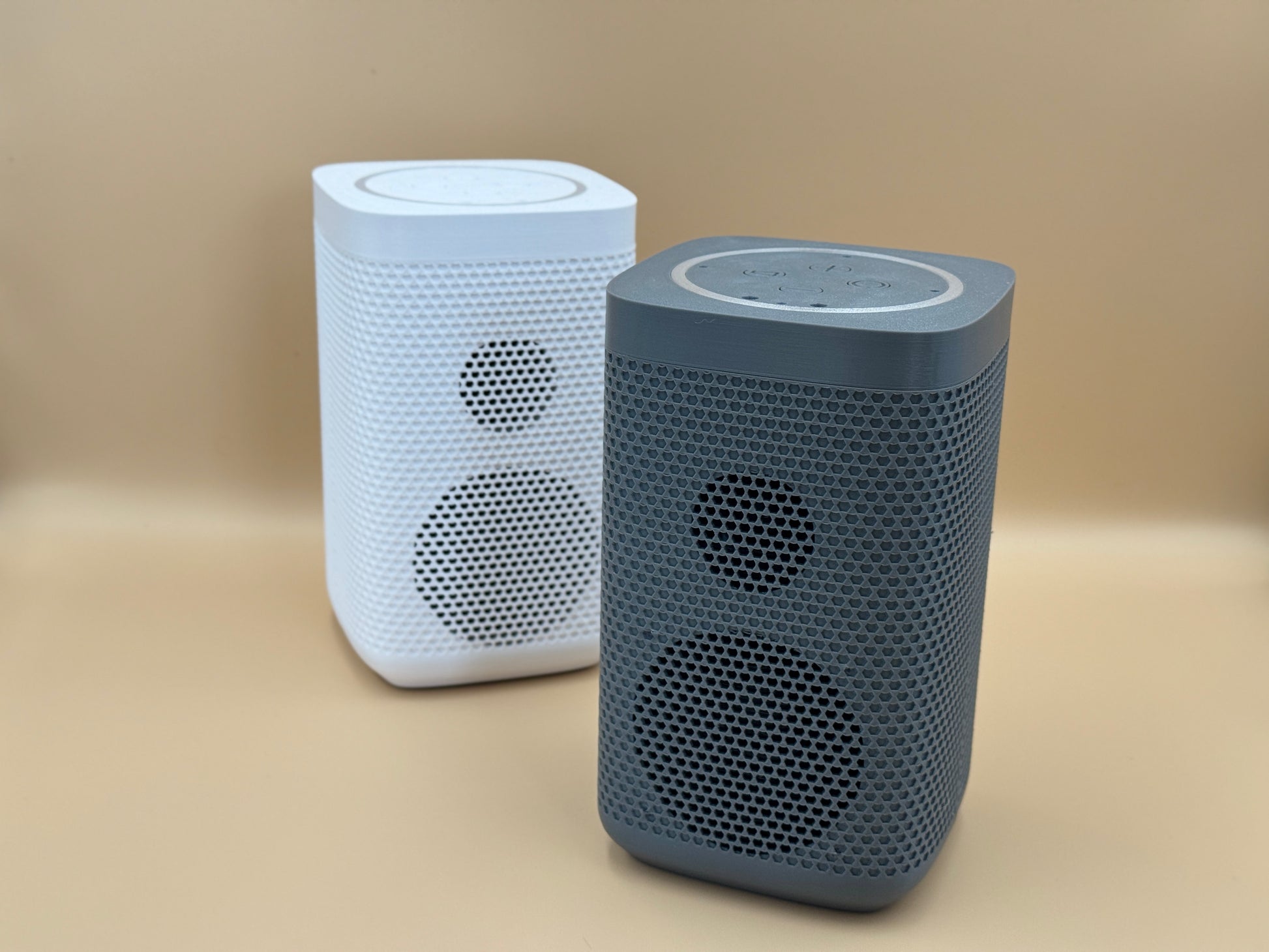

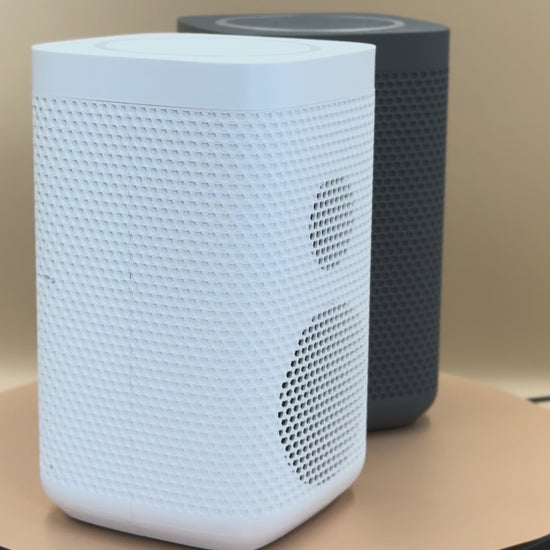

Custom 3D-Printed Mesh Speaker Enclosure

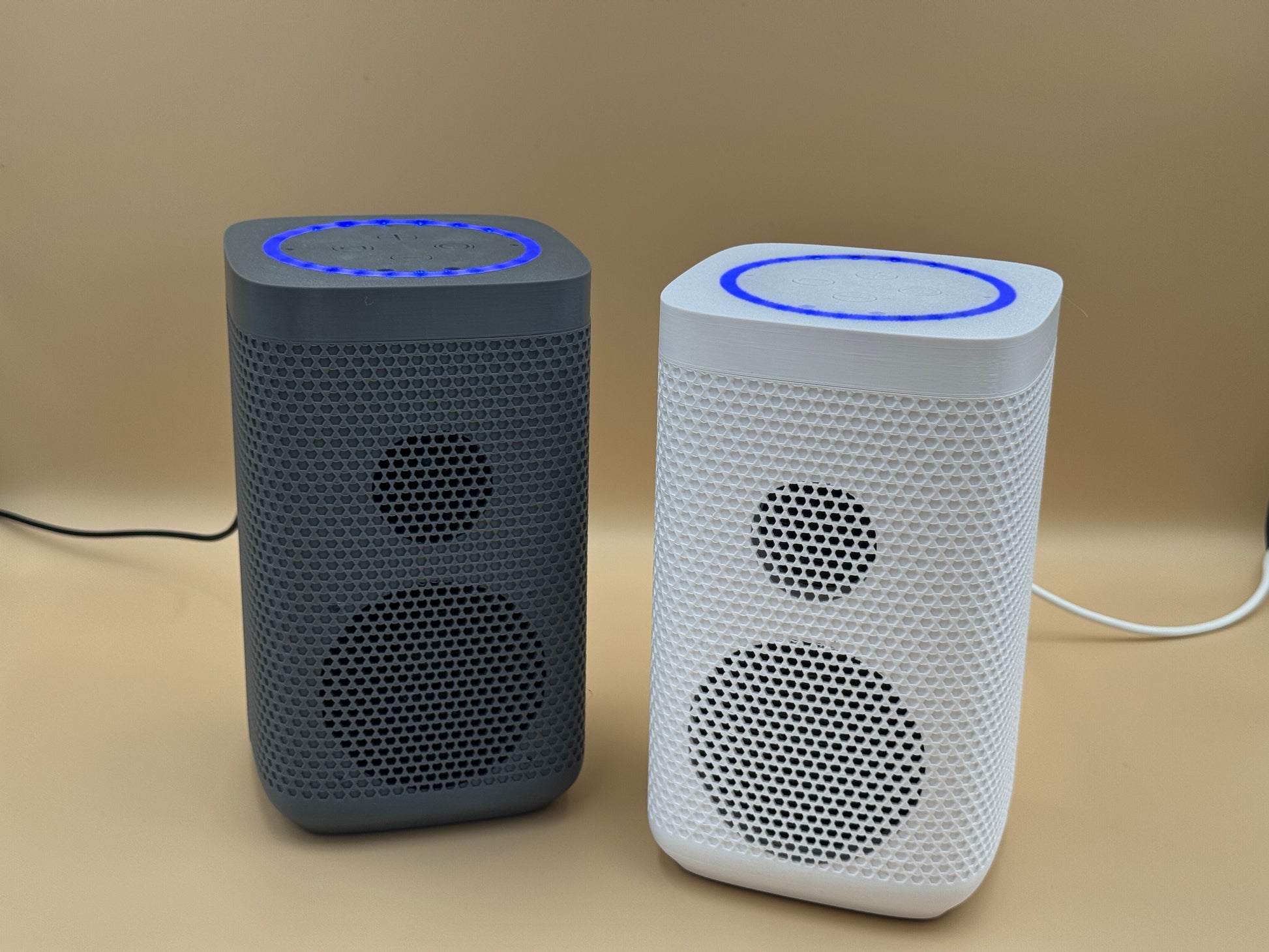

Available in Charcoal Gray or Bone White. Engineered for strength, beauty, sound and to perfectly fit our Satellite1 Core and Hat board dev kit. Enclosure Includes:

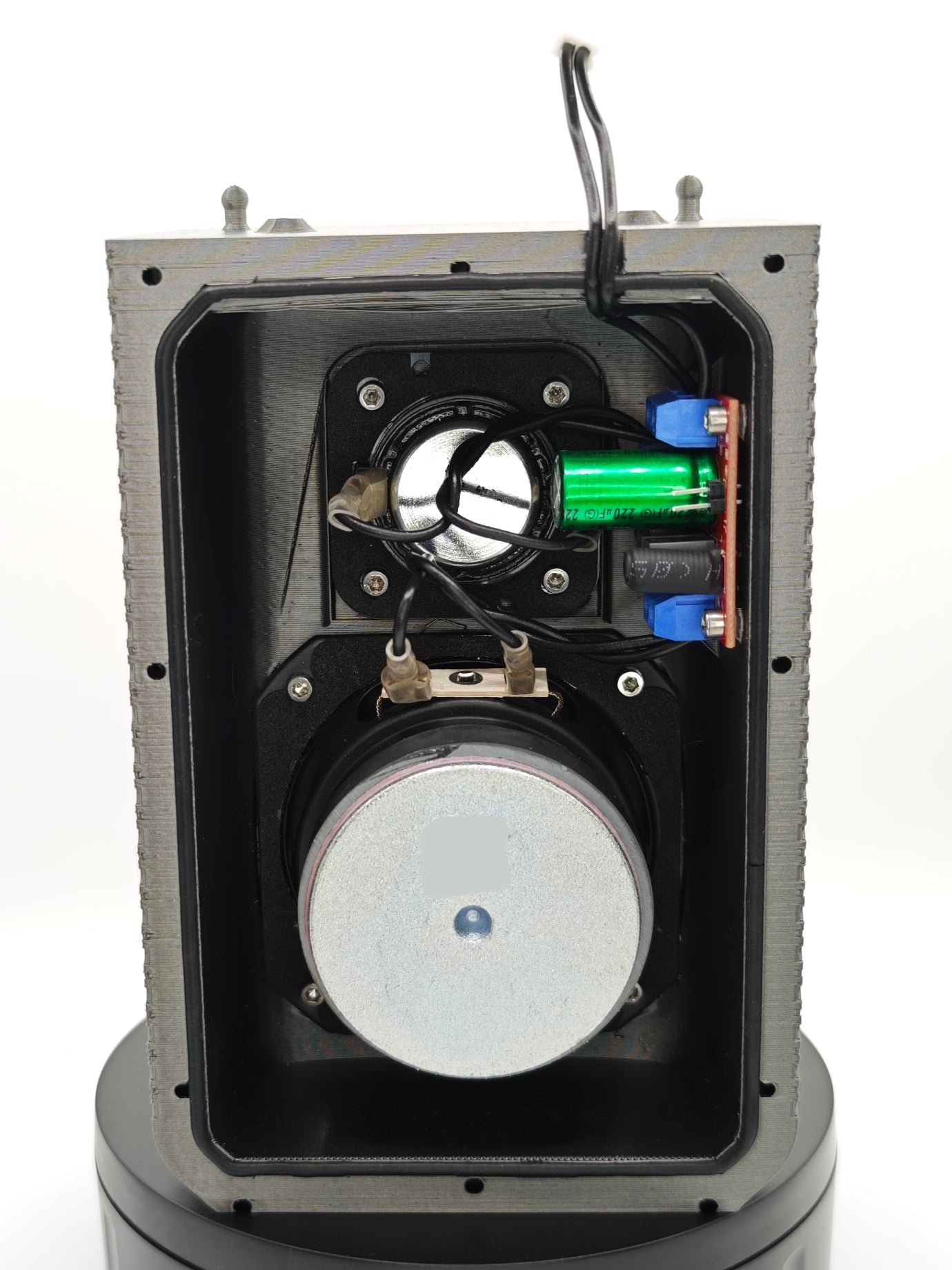

- Front speaker chamber with "stealth pocket" for LD2450 human presence sensor - PETG, 30% infill
- Back speaker chamber with "stealth pocket" for Sat1.1 external WiFi antenna, and a bass port for optimized sound - PETG, 30% infill

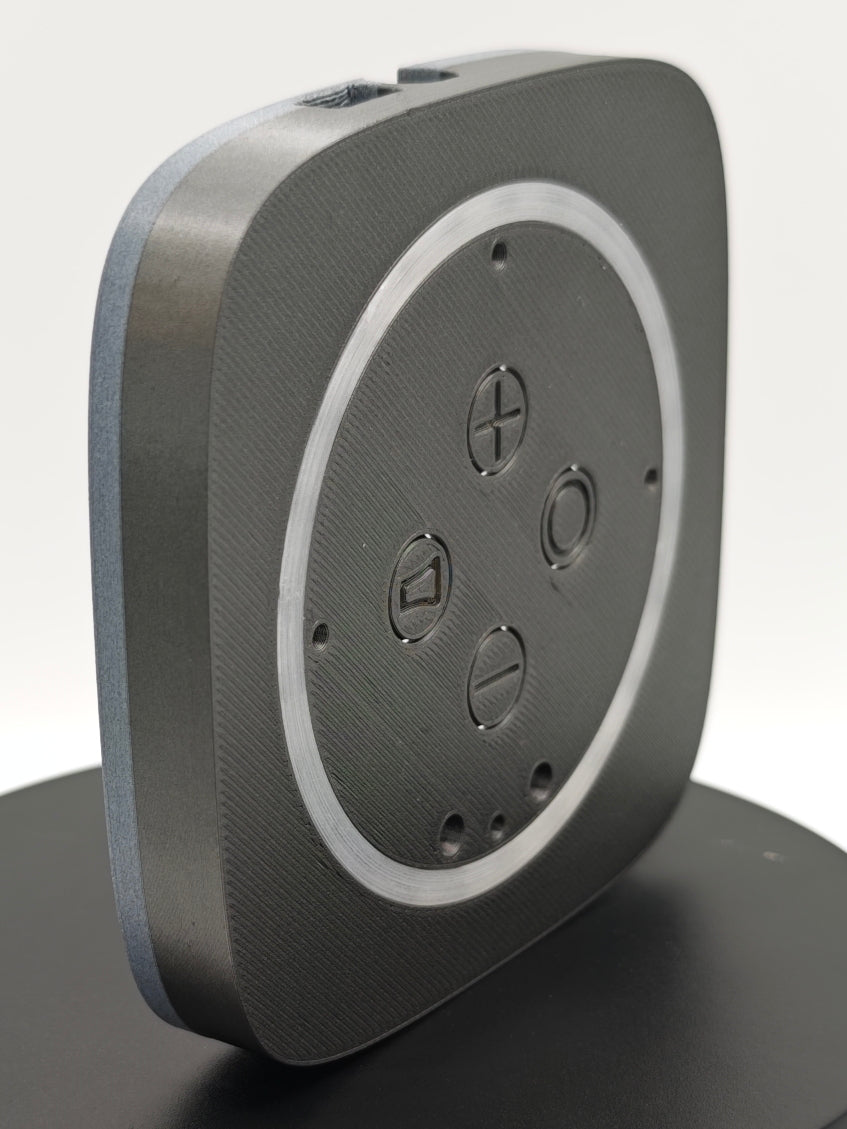

- Top plate & LED diffuser multi-material print - PETG, 15% infill
- Screw guide tool – PETG, 15% infill
- Printed using your choice of color:

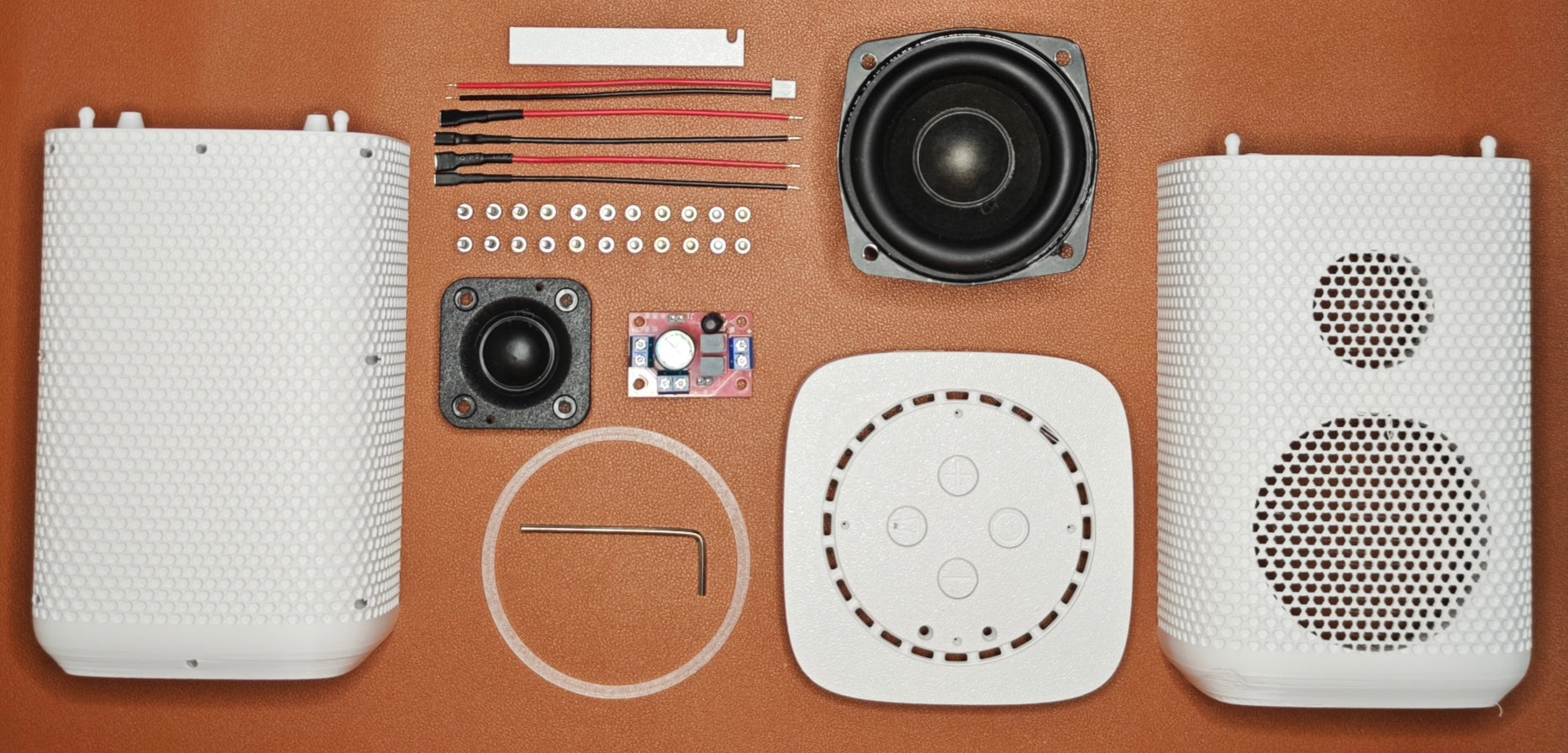

Additional Included Components
- Internal wiring, mounting screws, hex wrench and airtight sealing strip included in kit.
Sold Separately:
- Satellite1 Dev Kit and Power Supply
- Purchase the LD2450 mmWave sensor with our custom dual-sided 4-pin JST-ZH connector cable. Make use of the Satellite1 "stealth pocket" to upgrade your speaker with human presence detection!
Documentation:
Dimensions
Dimensions
When removed from packaging:
Width: 110 mm
Length: 110 mm
Height: 181 mm
Weight
Weight
When removed from packaging:
950 g
Share
Build the Satellite1 Together
Really cool little kit!!! Goes together easy and works very well.
Great product
I am very happy with it. Great sound a quality overall
The enclosure kit is well-designed and straightforward to assemble. Fits the Satellite 1 perfectly and gives it a clean, finished look. Integration with Home Assistant was seamless — up and running in minutes. Great addition to any smart home setup.
I am quite happy with it. It is a great improvement over the HA Voice PE, which I had an external speaker connected. I don't listen to music over it but voices are clear and distinct, great for NPR. Assembly was easy and directions were clear. Thought the case rear is different on the ones I received and so the antennae installed differently, but I got it figured out. It also seams to pick up my voice better and not picking up the TV as much but still does occasionally. I would buy again.
