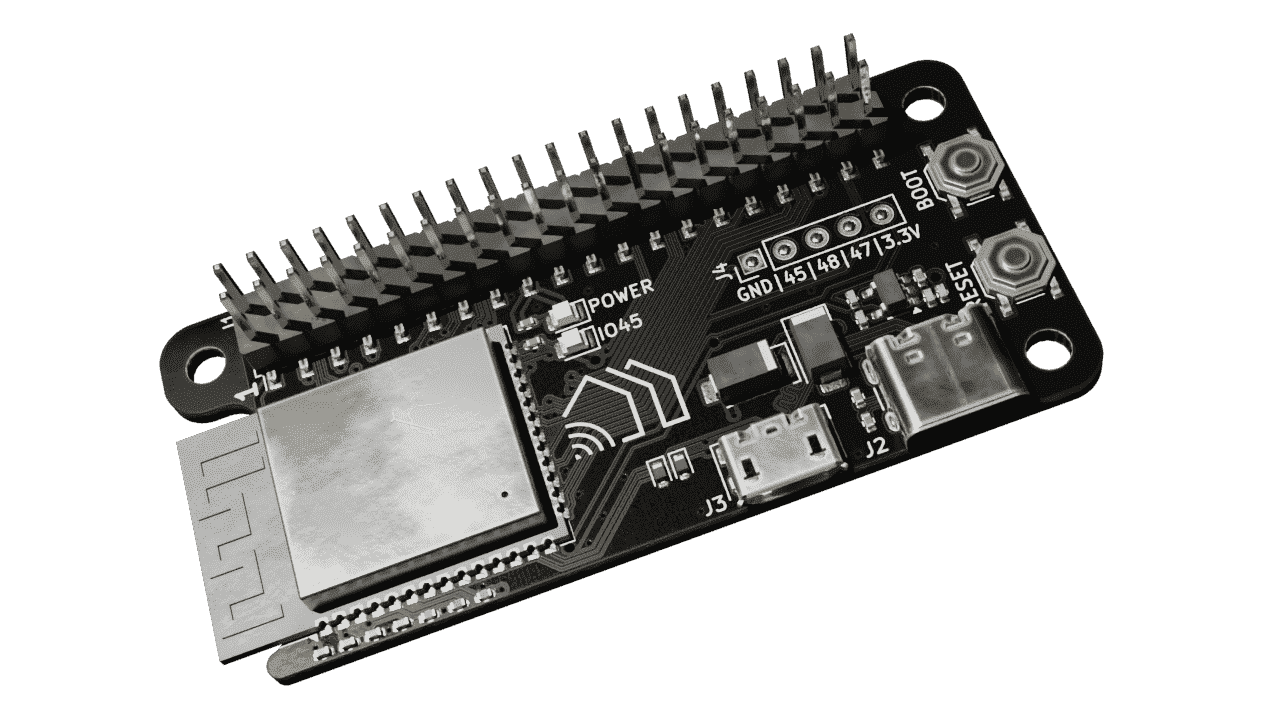

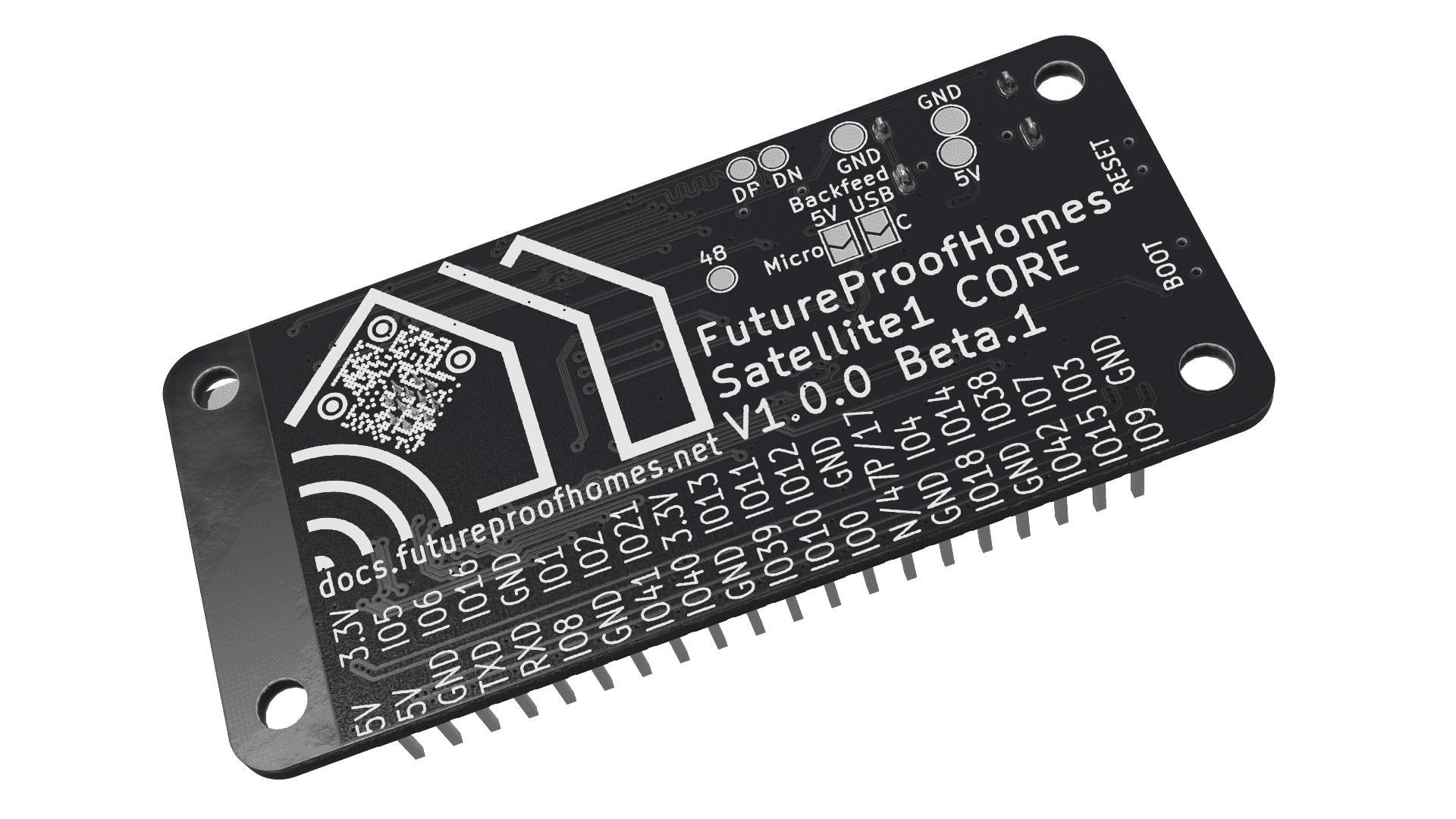

(Previous Generation) Satellite1 Core Board

(Previous Generation) Satellite1 Core Board

Regular price $24.99 USD
Regular price Sale price $24.99 USD
Sale Coming Soon
Flat Rate Shipping. No extra charges on delivery.

In stock

The Satellite1 Core Board is powered by an ESP32-S3 and designed to pair seamlessly with our HAT Board, enabling you to create a world-class voice assistant.

Specifications:

  • Powerful Processor: ESP32-S3 N16-R8 WROOM 1 with dual-core 32-bit LX7 running at 240 MHz.
  • Memory: 384 KB ROM, 512 KB SRAM, 16 MB Flash, 8 MB PSRAM
    Raspberry Pi Compatibility: Supports most Raspberry Pi HATs, eliminating the need for a Raspberry Pi board.
  • Open-Source Platform: Flexibility for customization and community-driven development.
  • Compact Form Factor: Mimics the Raspberry Pi Zero form factor with additional onboard features.
  • Wireless Connectivity: Built-in 2.4 GHz Wi-Fi (802.11 b/g/n) and Bluetooth® 5 (LE) support.
  • Multi-Language Programming: Arduino IDE, MicroPython, and CircuitPython compatibility.
  • Expandability: 40-pin GPIO breakout, USB port with 2 connectors (one Type-C, and one Micro for compatibility), programmable Red LED.
  • User-Friendly Design: Features diagnostic LED’s, boot and reset buttons for easy setup and troubleshooting.

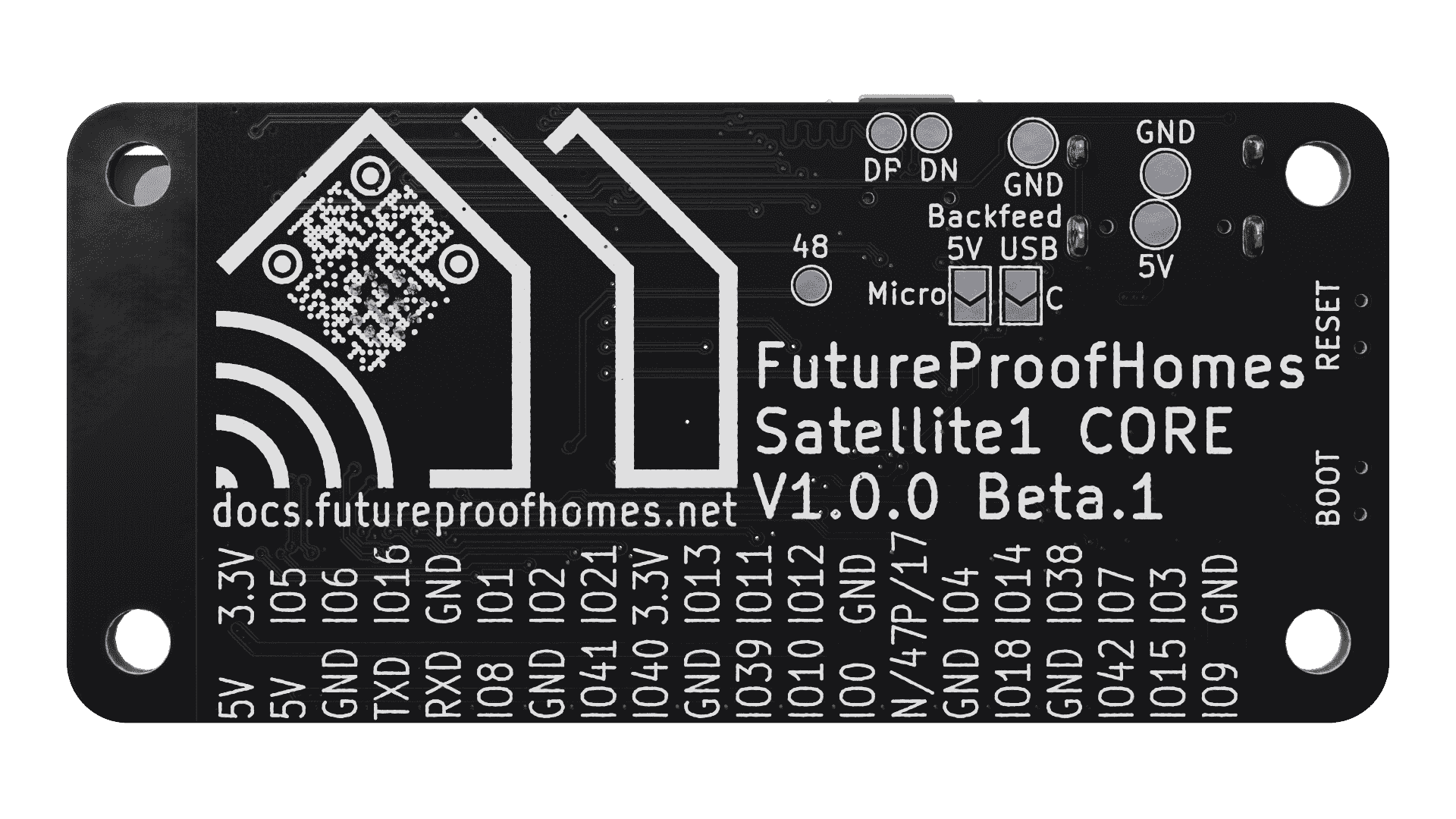

  • All 31 GPIO accessible: 28 exposed to the RPi 40 pin header, and 3 exposed as pads.
  • Hardware owned by you. No vendor lock-in, or planned obsolescence.

Bonus Functionality:

Thanks to thoughtful modular hardware design, the Satellite1 Core Board mimics the footprint and header pins of a Raspberry Pi Zero. This makes the Core Board a drop-in replacement compatible with a variety of Raspberry Pi accessories!

Not Included in Packaging:

You must supply your own USB-C cable and power adapter.  See below the recommended accessories.

Regarding Timelines & Inventory:

  • Batch #1 has been shipped to all customers as of Jan. 31st, 2025.
  • Batch #2 will be ordered from the manufacturer in March. 2025, and we estimate orders will be shipped in April 2025. You should have received an email if your order falls in Batch #2.
  • Batch #3 should begin shipping in June 2025!

Dimensions

When removed from packaging:

Width: 66 mm

Length: 31 mm

Height: 10 mm

Weight

When removed from packaging:

13 g

View full details

Build the Satellite1 Together

  • 5 stars: 136 (76%)
  • 4 stars: 30 (17%)
  • 3 stars: 10 (6%)
  • 2 stars: 2 (1%)
  • 1 star: 0 (0%)
Some of the reviews shown are from related products the merchant grouped with this one.
P
Peter
exactly the right thing

Exactly the right equipment for our caravan: an OpenWrt Raspberry Pi, a Home Assistant Raspberry Pi, and two of these smart speakers. Great developers. Unfortunately, I had to order the two units separately for delivery to the EU, so I ended up with two different casings. the first one lacks the bass tube. It doesn't matter, though, since they look identical from the front.
Greetings from Switzerland.

R
Rob Veck
Pulled the Cat from the Bag at the last minute

On my conference call to discuss the issues I agreed to investigate the performance and speech capture issues. The test compared V1.4 with HA Voice PE and the latter won hands down. (a total of 30 repeated tests at 1/2/3 metre distances per device).
I asked for a refund but luckily V1.5 arrived just in the nick of time. The voice capture was not distorted but instead now fully captured (not cut or parts missing). And the wake word activation more sensitive / reliable, but still not quite as good as the HA Voice PE which responds 4 metres away in another room when standing by the Sat1. I was advised that wake word training might be needed due to having a British acent and that’s on my todoist list.
This product has promise and wish the development team good luck with further improvements

A
Anonymous
Really good kit, but a bit expensive.

Works great out of the box, but it's a little lite on documentation, specifically with respect to different ways to integrate into esp home. Nothing you can't eventually figure out, but it takes some research. For those of us that want devices in every room this is too expensive. By the time you build, or buy a housing, and decent speaker you are over $100. You can get there other ways, that are quite a bit less expensive. Overall a good product.

Noted on the needing more documentation. Please feel free to reply here with what was missing or even out documentation repo in GitHub is good place to open issue: https://github.com/FutureProofHomes/Documentation

J
Justin Stone
I know its beta DIY but it's been working good

I know its beta DIY but it's been working good. There are a lot of problems but its on the HA/MA side as nothing seems to be immune ;) The sound for music is great. It's better than my echo's and I love having the control of playing local plex music or spotify.

T
TheMRGarry
Great Development Kit

So I‘ve started designing a speaker enclosure and ended up being done before the kit even arrived, because of the great documentation.

It would be great, if the kit would expose itself, like any other smart speaker does (but playing music through music-assistant is sufficient until then).

S
Stephen Brown
Good, but some missing features

This is a pretty good alternative to the home assistant voice PE but in my opinion could be improved.

The good: The LEDs are great, it's easy to get up and running and the 3D printed case is great (I did the smallest squircle case and put it on top of a bookshelf speaker). The amplifier is powerful enough to power a proper bookshelf speaker which is great and the sound is really good.

The not-so-good:
- It seems to take a little longer to respond to the wake word than the other assistants I've tried
- It doesn't have the "mycroft" wake word built in
- There is no sensitivity option for the wake word
- There is no gain control for the microphone
- It doesn't integrate as nicely with music assistant (it doesn't use sendspin like the other assistants) and was more fiddly to set up

So overall I like it, but it's not as convenient as the others and it doesn't trigger as easily. I'm keeping it because the amplifier is good.

I
Informatiker
Huge Shipping Costs to Germany

I would like to order case+dev kit but the shipping to Germany will be €26.90 (17,95+8,95 in two shippings). Could you please offer just one shipping for both articles? Why is it so expensive to order from Europe? Are there alternative shops situated in Europe? Thank you. BTW nice work!

J
Jonathan Rollins

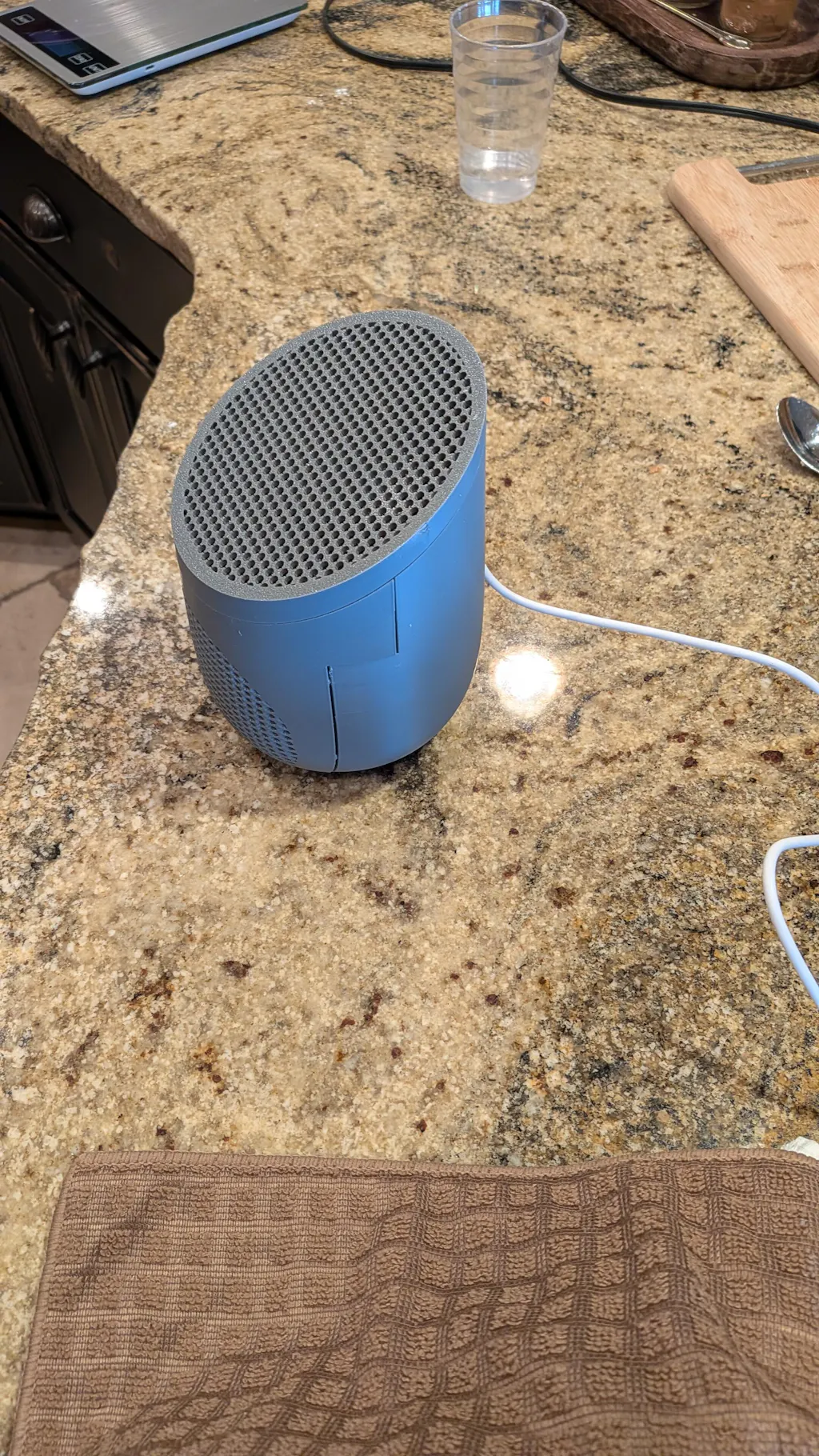

Great device - make sure the mic ports in your printed enclosure are wide enough...oops

Update: 1/18/26
Ok so totally my fault. I should have done a little troubleshooting before jumping to the review. Turns out the through holes in the enclosure were a bit too small. I drilled them out just a tick larger and now I get perfect responsiveness. Anyone else who is having wake word sensitivity issues - pull the board out of the enclosure and test it. You too might need to do a tiny modification. This device is now everything I anticipated it would be. Comfortable saying these will replace my remaining Google nest speakers :)

Nice kit. Audio is pretty good with the speaker I used for the mid size build. Side by side with the home assistant voice PE I hate to say it but the satellite one is nowhere near as sensitive to wake words. The voice PE will pick me up from well across the room but I have to speak very loudly or get quite close to the satellite one before it it recognizes me. This only gets worse if there's any audio playing. Even at low volumes I have to speak very loudly. Hopefully this is a software thing and can be fixed. I did a little googling but have not dived in depth for troubleshooting. I can't imagine that it is the enclosure because there are direct holes for the microphones. My first thing might be to disassemble it and see how well it works out of the enclosure. Would love to hear suggestions on how to remedy this. If the sensitivity was better it would be a five-star for sure.

Hey Jonathan,

Sounds like something is wrong, this experience isn't normal. Can I recommend joining us in the discord and sharing a video of your setup and the behavior. That said, our upcoming firmware has a wake word sensitivity setting built-in.

Your 3D printed enclosure looks great. Congrats!

A
Anonymous
Awesome product and great enclosure designs

Awesome product and great enclosure designs.
Can't wait for some firmware improvements to iron out last wrinkles like false positive wakeword activations.

G
Geoff Smith
Sat 1 Dev kit arrived quickly and now installed and working great fitted inside the large enclosure

Sat 1 Dev kit arrived quickly and now installed and working great fitted inside the large enclosure. Looking forward to the expansion board and updated enclosure models so that I can mount the mmWave detector facing into the room.

Only downside I can see is that the other light and temp sensors are enclosed within the enclosure and therefore not very accurate as room monitors. As far as I can see there are no risers for those sensors like there are for the mmWave sensors

P
Praveen Satyanarayana
Great board and design, but needs minor tweaks in accessories.

The HAT board is working great and easy to setup with Home Assistant following the instructions provided.

However, Music Assistant setup has not been great, in the sense that, when i try to play music on the Satellite 1 board, it simply does not work. Tried many things including removing and readding the satellite multiple times. Nothing has worked so far.

Additionally, the 3D printed Squircle enclosure for large speakers are neat. However, I am having issues printing the Speaker Plate for GRS-3FR 4 speaker as the part is knocked off from the build plate exactly at layer 382. I am using an AnyCubic Kobra S1 Combo 3D printer. Tried different slicing software with the printer profile along with multiple adjustments. Nothing has worked so far. I tried adding a larger brim, increased the build plate temperature to 60 deg C (I am using AnyCubic PLA black), tried disabling "Reduce infill retractions" to ensure it does not inadvertently knock-off the part. However, this issue happening exactly around layer 382 +/- 5 seems like something is wrong.

Other parts printed very well and the Squircle design is too good at looks.

Kudos to the team who built this system.

H
Harrie Gulikers
Great (smart) speaker!

I have only finished builing the speaker a few hours ago (medium Squircle, 25 Watt speaker) and I'm impressed by the quality compared to my Google Nest speakers. The HAT board has a good quality finish. I really appreciate the visual feedback of the LED ring: listening, understanding, speaking... That's a great added value for a smart speaker!

J
Joel Werner
This whole project is absolut amazing

This whole project is absolut amazing. The Hardware ist first class, the documentation ist very detailed and the 3D print files fitted perfectly. Overall really great job.
At now, I am not very comfortable with the voice assistant from Home Assistant, but this has nothing to do, with this project.

M
Michael Catalano
This device works well and has the expandability that all us tinkerers enjoy

This device works well and has the expandability that all us tinkerers enjoy. It installs fairly easily, although I am trying to flash and reinstall one that recently just stopped work on me with no success as of yet. I think this may be the best voice assistant yet and I am looking forward to the cases, speakers and other offerings to enhance it's functionality. Mike Cat

M
Martin Loewe
Really nice project and working really well

Really nice project and working really well

Amazing enclosure you've built there! Looking good!

n
nutcracker
Great little project! Working well… looking

Great little project! Working well… looking forward to how all this plays out!

A
Anonymous
Great piece of kit - easy to setup and connect

Great piece of kit - easy to setup and connect to HA - with the added benefit of being able to connect better speakers for use as music player

G
Glen
Outstanding product

Outstanding product. Easy to setup and has replaced all of my Echo devices. Highly recommend

M
Mike R
I'm a newbie to Home Assistant and voice control is a key requirement for me

I'm a newbie to Home Assistant and voice control is a key requirement for me so I was keen to start experimenting.

I can see that I have a lot to learn but I'm looking forward to the challenge. The Satellite 1 looks like the device for my journey. It's well made and the 3D housing models are great.

A
Ander
Satellite1

I receivedmy satellite1. The setup was easy and sounds great with a speaker that I already had at home

B
Bobg
Good, but not a Sonos or Alexa killer... Not yet

The kit is not hard to build and connects with little effort to Home Assistant. I built the 25W tall version and it sounds OK, but not as good as my Sonos (which I would like to replace). It can turn things on and off by voice, but not set an Alarm (Limitation of HA). Great things to add: 1. Clock, 2. Alarms, 3. Sonos rivaling sound. With these and a Nexus, I could finally throw away my last Alexa.
